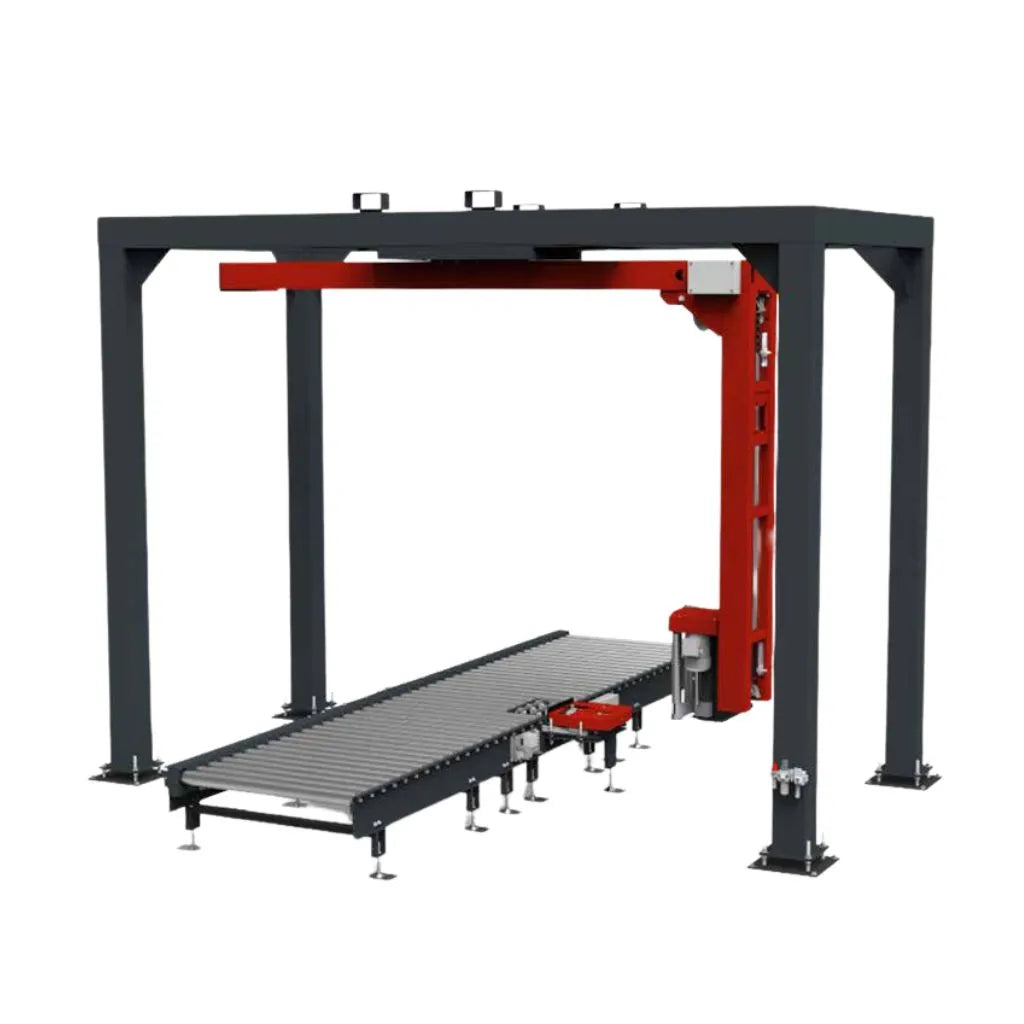

STANDARD MACHINE TECHNICAL CHARACTERISTICS

· Powered pre-stretch carriage 300% with anti-entanglement and roping system.
· Load height detection by photocell
(Optional: detection by ultrasounds for black loads).
· Rotary arm transmission by sprocket.
· Reel carriage transmission by ½ chain.
· Soft start and indexed stop with SCHNEIDER speed inverter.
· 3ALL feature: clamping, cutting and dolly heat sealing.
· Wrapping cycles counter.
· Independently adjustable top & bottom reinforcement wraps.
· Independently adjustable roping system to reinforce the load.
· Light and sound indicators for functioning signals and alarms.
· Controlled by PLC SIEMENS.
· Panel control with touch screen.
· Production: ± 50 pallets/hour
(variable depending on the characteristics of the load, number of wraps, etc.)
· 10 customizable programs by the user: starting, upper and final wraps, overlapping lapse, roping, etc

Carriage



PEM Carriage


Powered pre-stretch carriage 300% with anti-entanglement
and roping system (Optional: 150%, 200%, 400% pre-stretch) Motorized pre-stretch 300% with roping system and elec-tronic regulation (optional)



Electrical cabinet



With touch screen for programme settings



Rope system



Strengthens and stabilises the load.



special options



· Central powered roller conveyor (optional)
· 1.800 mm high safety fences with access doors and photocells
for anti-intrusion for the infeed and outfeed of the load with muting alarms (optional)
· Pallets lift table to wrap the load and the pallet (optional)

No minimum wrapping height required



Thanks to the combination of the different features in the 3ALL system, there is no minimum load height required to wrap the complete pallet down to the bottom deck board.



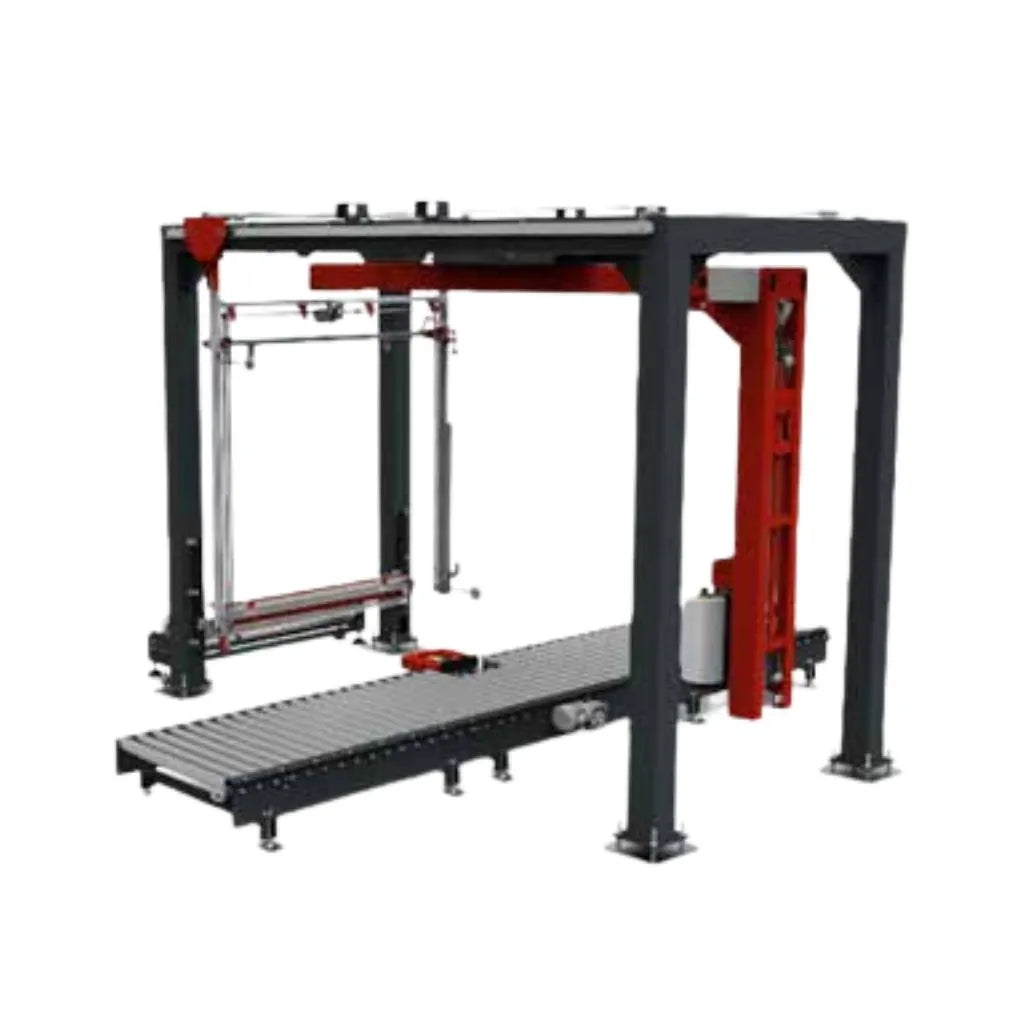

Powered top platen



It holds the load at the top of the pallet without deforming it while the pallet is being wrapped avoiding the risk of the product collapse.



3ALL system



Thanks to this system, the 3 independent external mechanical elements
are replaced and integrated in just one single unit, which performs the
same 3 functions: clamping, cutting and dolly heat sealing. Also, a rope in the film is made in the final stage, which allows the heat sealing of any kind of film (stretchable, microperforated, etc.) and with any thickness, thus avoiding the loose tail of film which appears without this system. This system also avoids its mechanical maintenance, as it does not have any obstacles.

By combining different features of the mechanical design of the elements with
the 3ALL system, there is no minimum height of product on the pallet so that
the load can be wrapped to the bottom of the pallet (bottom slat).



Special environments (explosive, corrosive, sub-zero atmospheres, ...)



We have solutions with proven experience in explosive atmospheres (ATEX),
corrosive environments (INOX) or temperatures below 0º C (down to -30 ºC).

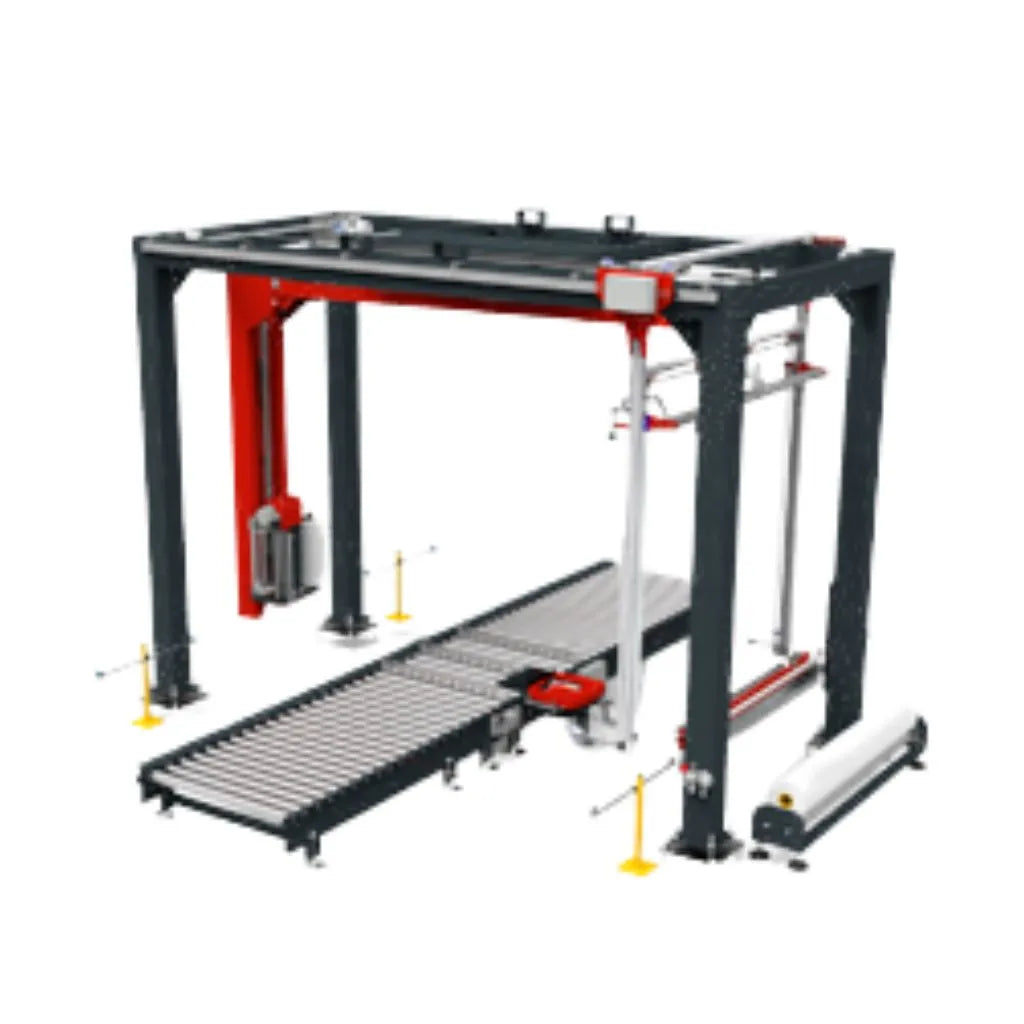

Top cover dispenser iTDM1800 (Optional)



Accessory that allows a layer of film to be dispensed on top of the pallet for com-
plete stretch wrapping. Depending on its location and the machine’s operating
cycle, the wrapping can provide dust or rain protection.



STANDARD MACHINE LAYOUT
