IHRESS
iBem200
Carton dimensions
· Type: RSC or B1
· Length: 250 - 530 mm
· Width: 150 - 400 mm
· Height: 225 - 600 mm
It is not possible to combine all the maximum dimensions Other dimensions on demand (it can add an extra cost) The quality and format of the cases must be verified and approved by the IHRESS technical office
Optional
· Stainless steel 304
· Bottom flaps closing with Hot-Melt
· Flap-opening gantry for automatic cartoning
· Automatic dimensional adjustment
· 1.5 or 2 m motorised carton magazine.
· Other colours on request (it can add an extra cost)

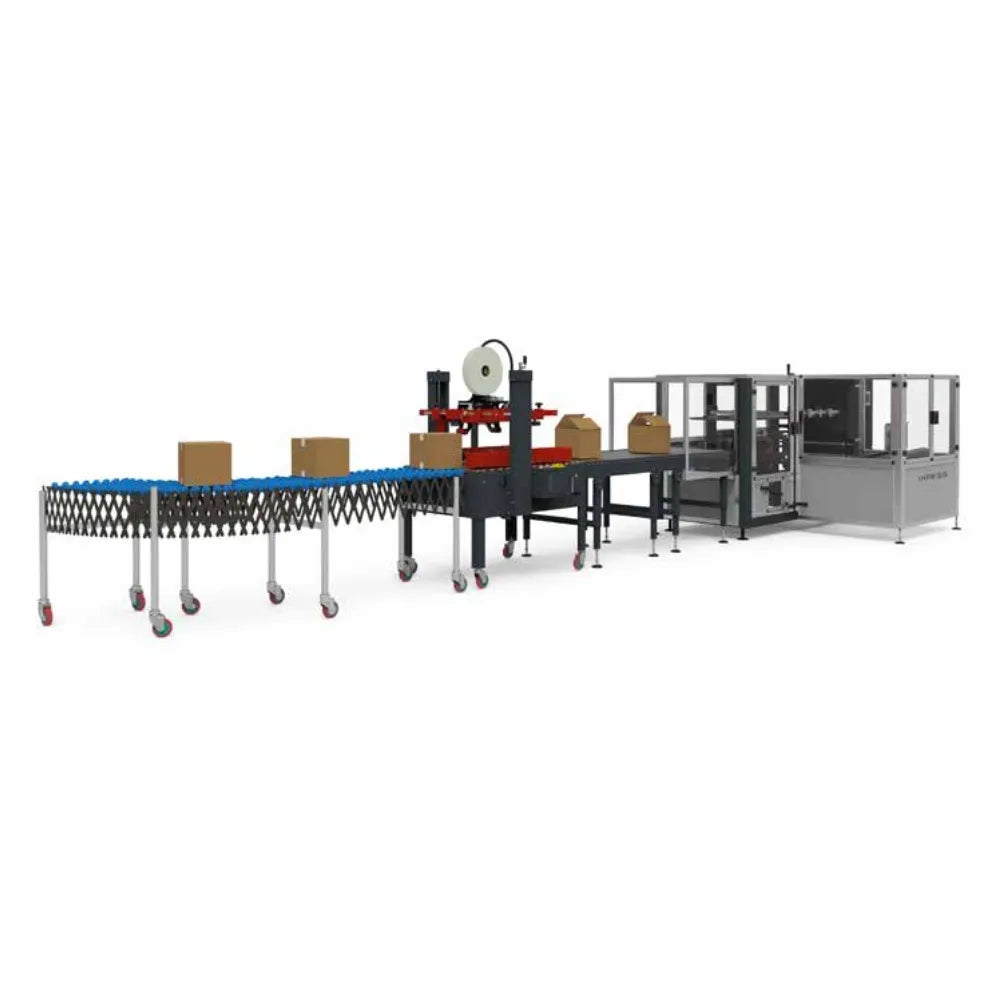

Automatic case former iBEM200 left hand execution + Free rollers conveyor
+ Semiautomatic single format case sealer iP15 + Extensible wheels conveyor

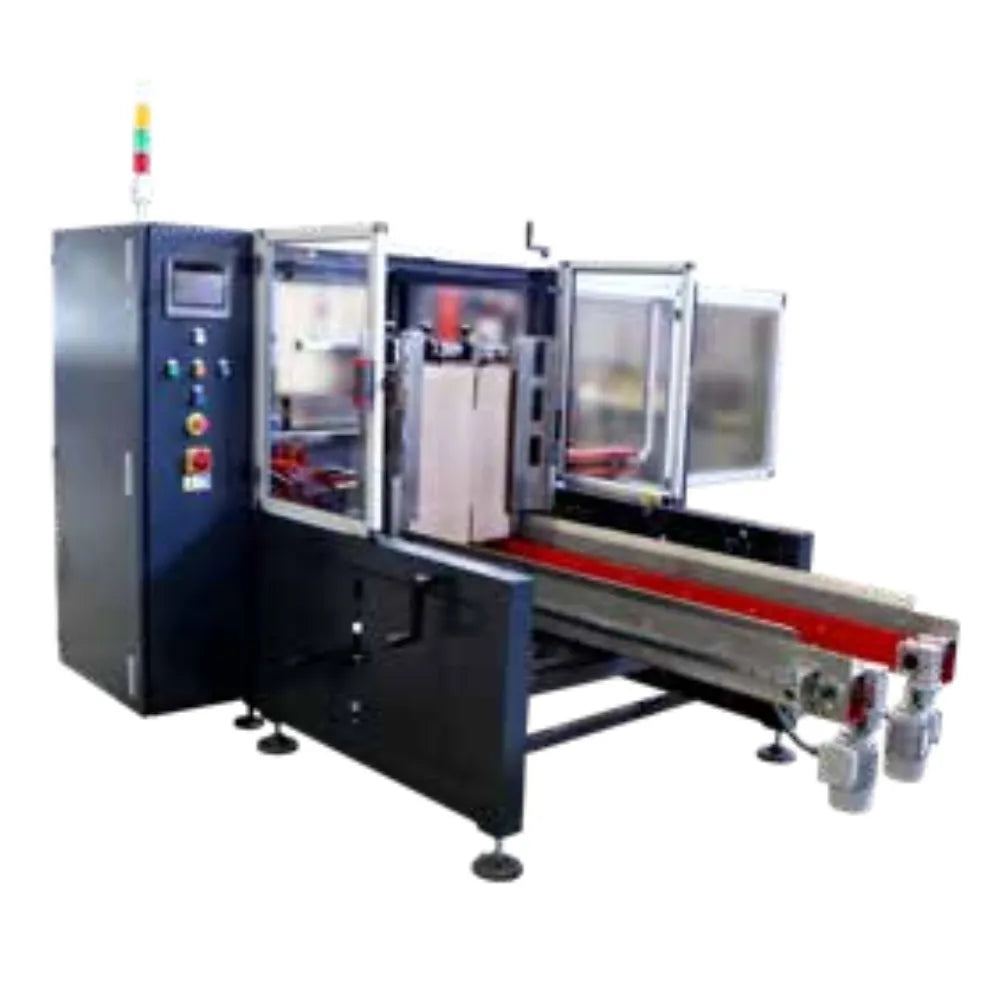

Version with motorised case magazine

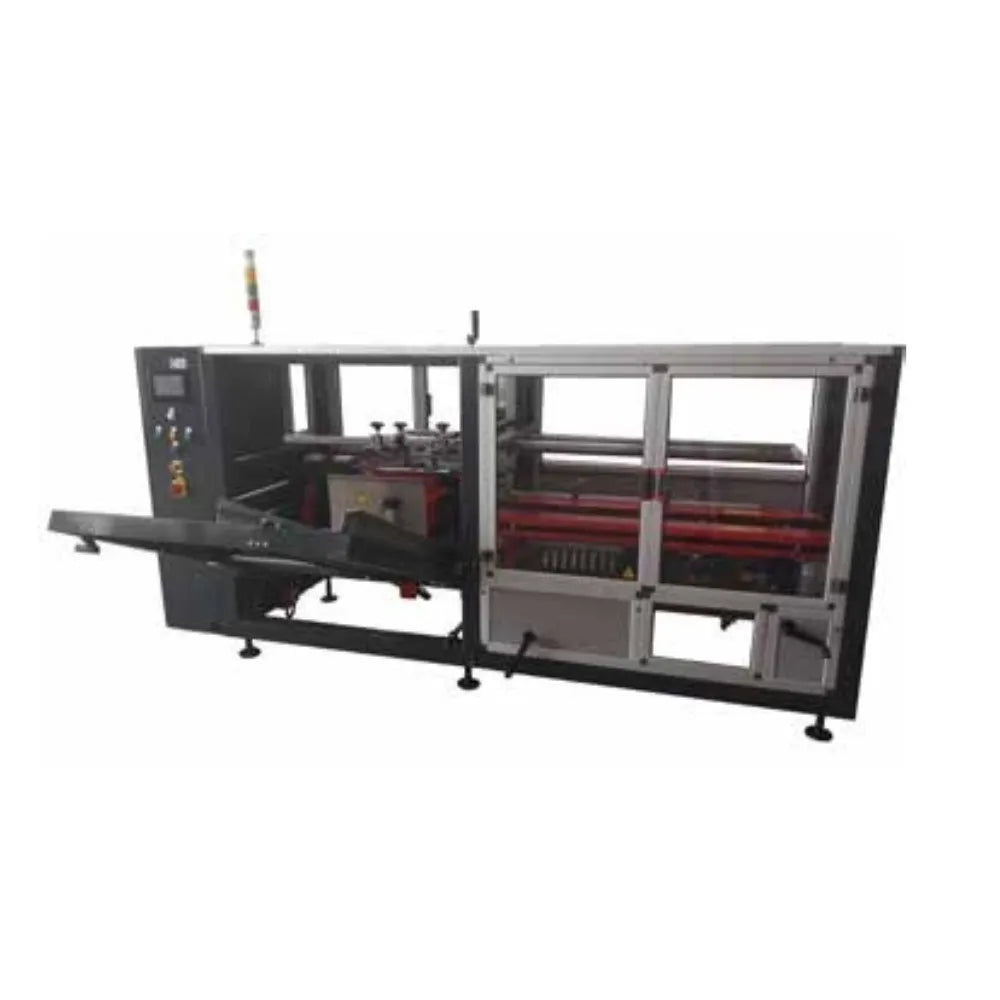

Standard version

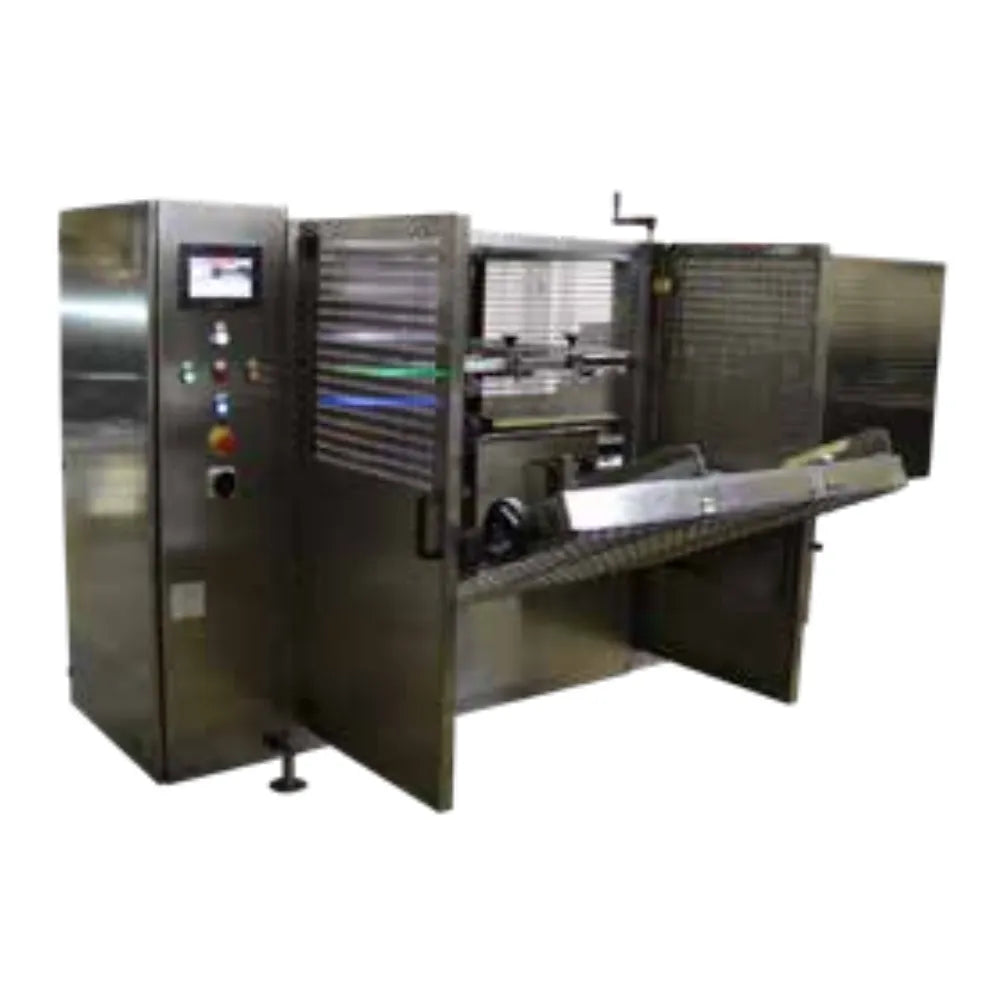

Stainless steel version
