STANDARD TECHNICAL FEATURES

· Carton dragging by side belts with independent motors.
· Top and bottom carton sealing.
· Weight 140 Kg.
· Adjustable height from 570 to 800 mm.
· Adjustable tape tension.
· Interchangeable taping head which allows using tape from 48 mm to 72 mm width.
· Metal rollers for the transportation of carton.
· Adjustable top guides to keep flaps squared while sealing.
· Hand wheel adjustment of carton width and height.
· Emergency stop on top taping head for quick access.

Permissible box dimensions

· Length: 250 - 500 mm
· Width: 200 - 400 mm
· Height: 130 - 480 mm

The quality and format of the boxes must be checked and approved by the BE GLOBAL technical office.





Closing process

Taping head



Special Options

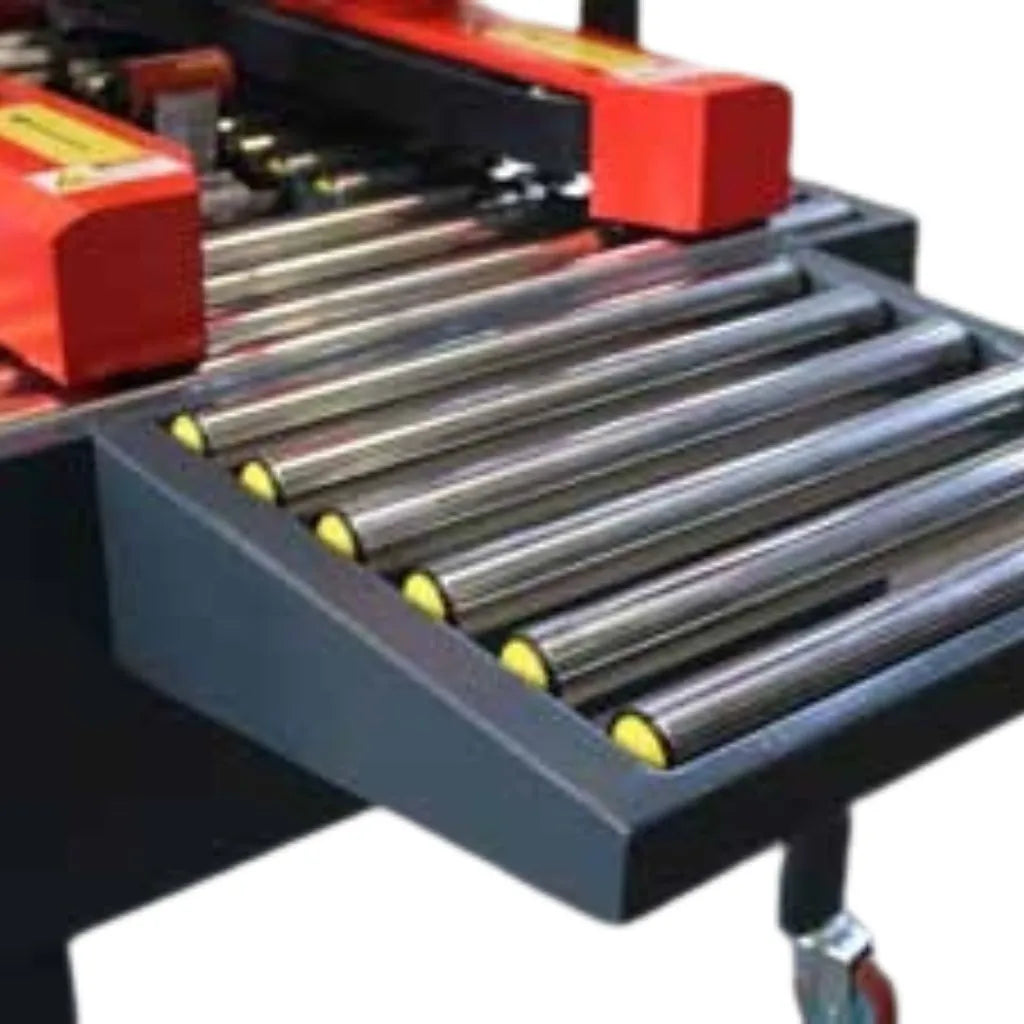

Infeed/outfeed roller conveyors

ATEX electrical enclosure + side guards

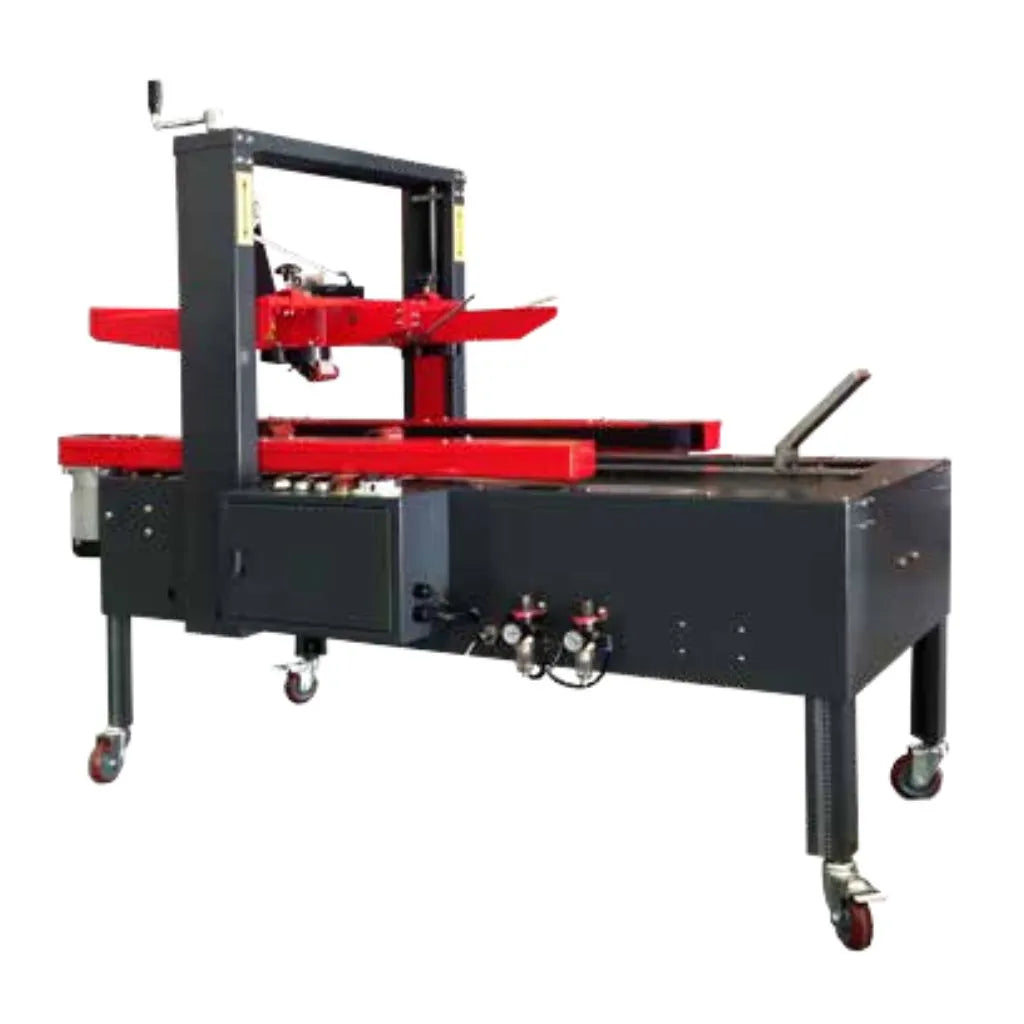

Air pressure system



Trainer

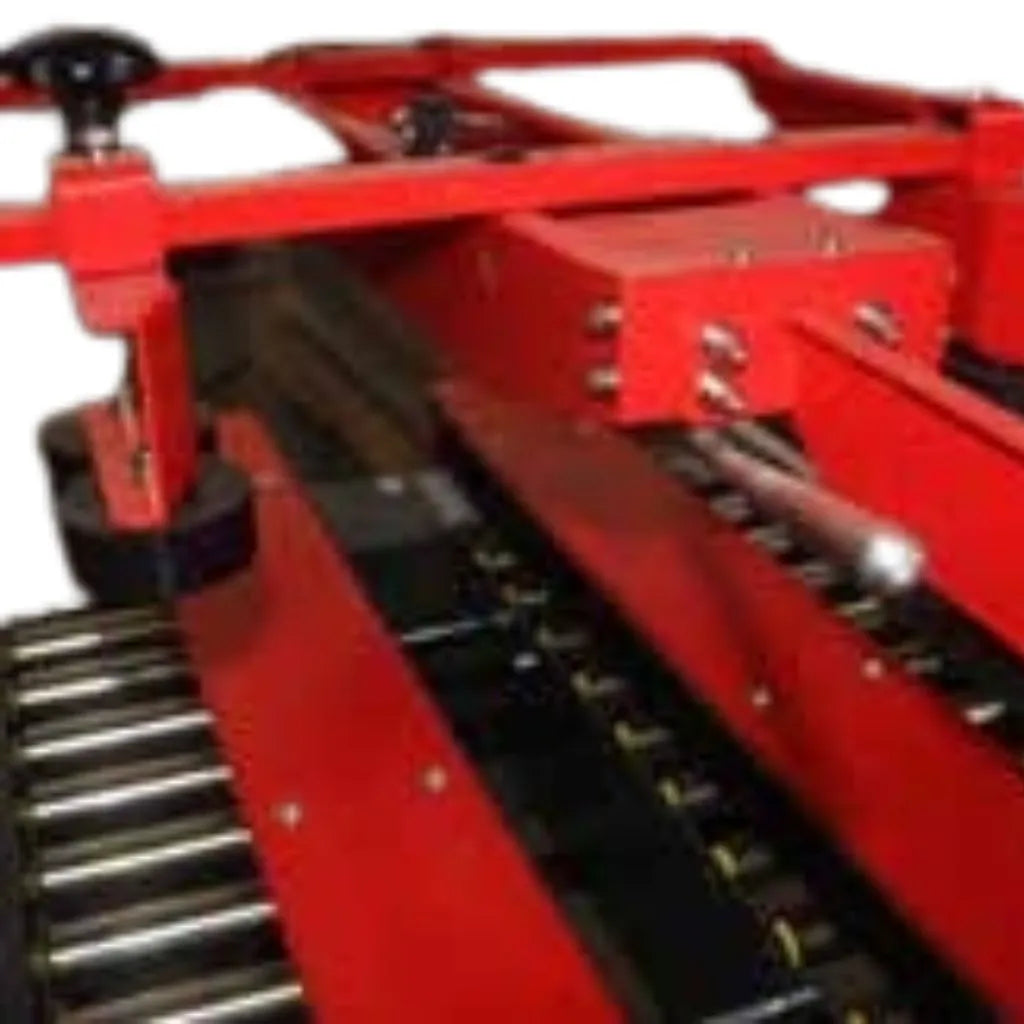

Seamer detail

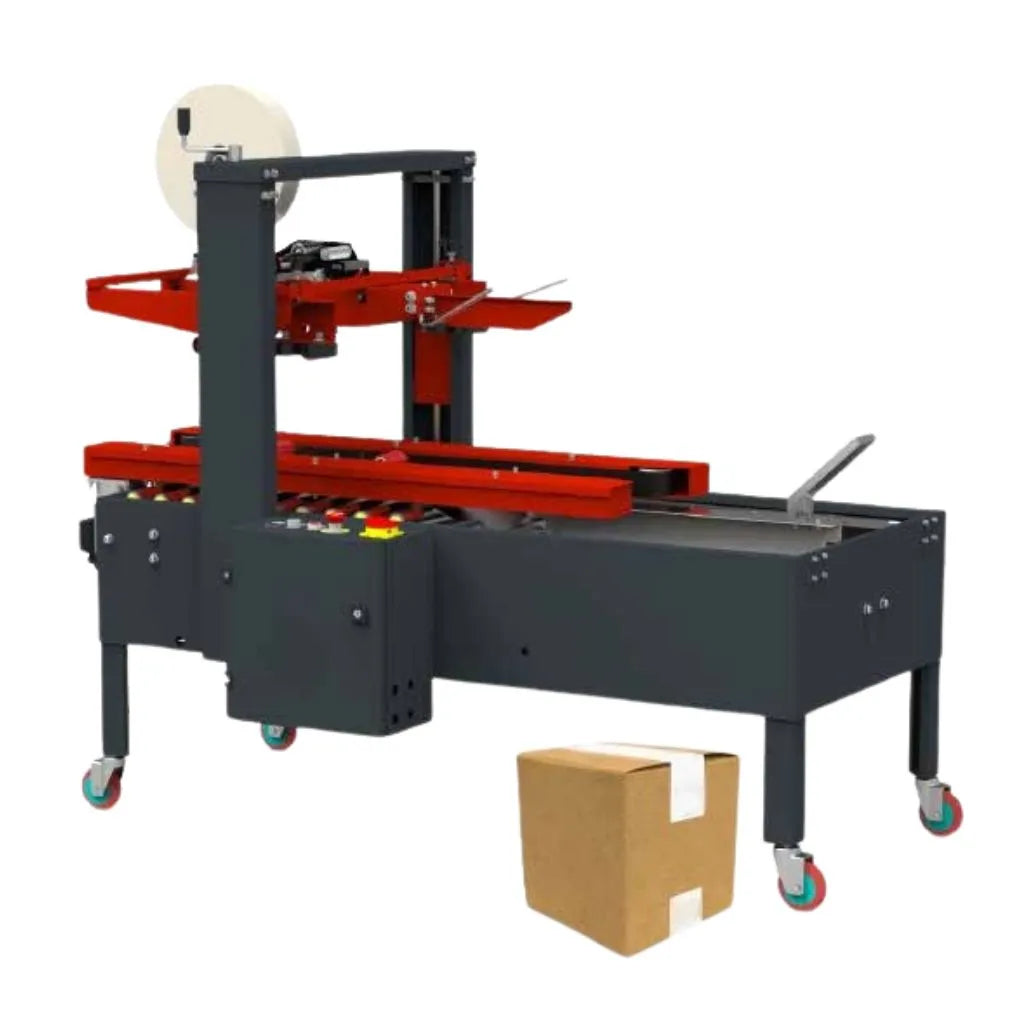

iP15F standard



Standard Machine Layout
