IHRESS

STANDARD TECHNICAL FEATURES

· Carton dragging by side belts with independent motors.
· Top and bottom carton sealing.
· Weight 140 Kg.
· Adjustable height from 600 to 750 mm.
· Adjustable tape tension.
· Interchangeable taping head which allows using tape from 48mm to 72 mm width.
· Metal rollers for the transportation of the carton.
· Adjustable top guides to keep flaps squared while sealing.
· Automatic adjustment of carton width and height.
· Emergency stop on top taping head for a quick access.

Dimensions of admissible boxes RSC or B1

· Length: 100 - ∞ mm
· Width: 130 - 490 mm
· Height: 120 - 500 mm

The quality and format of the enclosures must be checked and approved
by the iHRESS technical office..





Closing process

Taping head

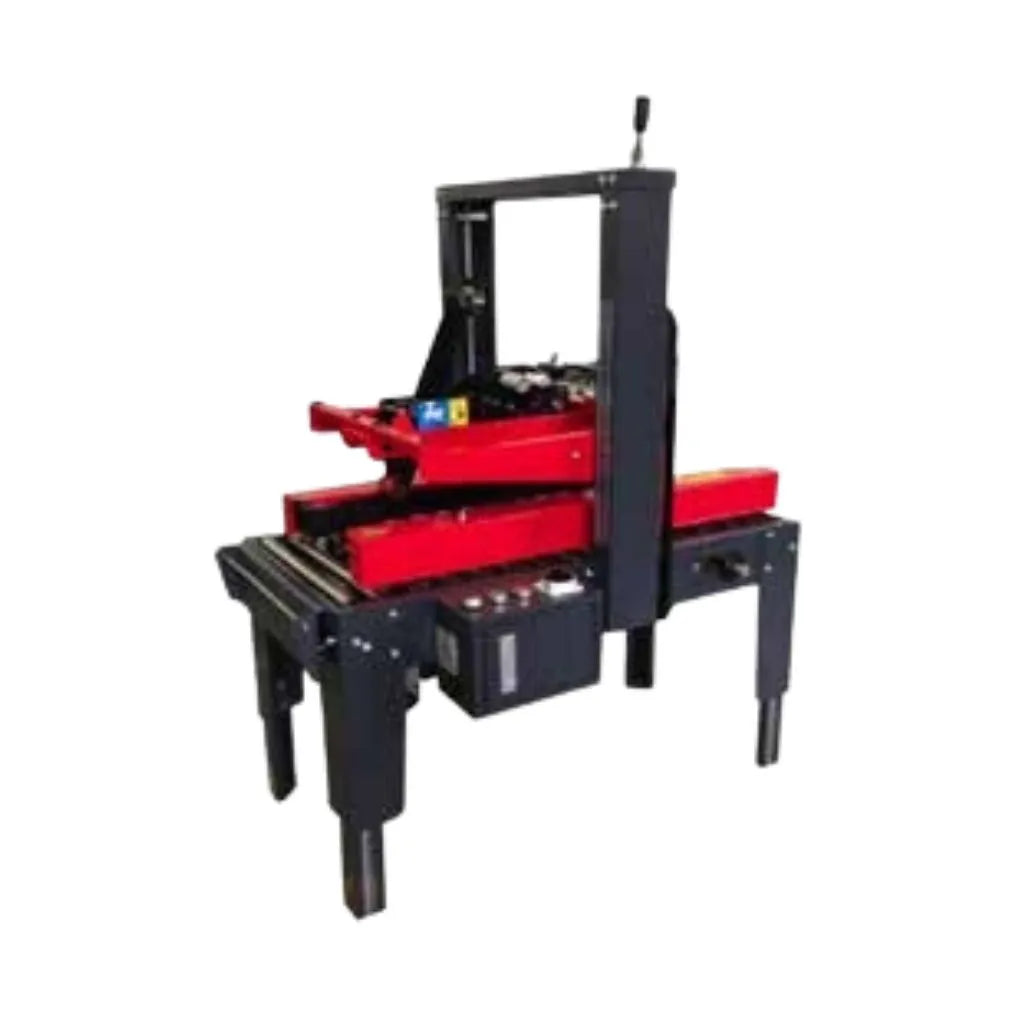

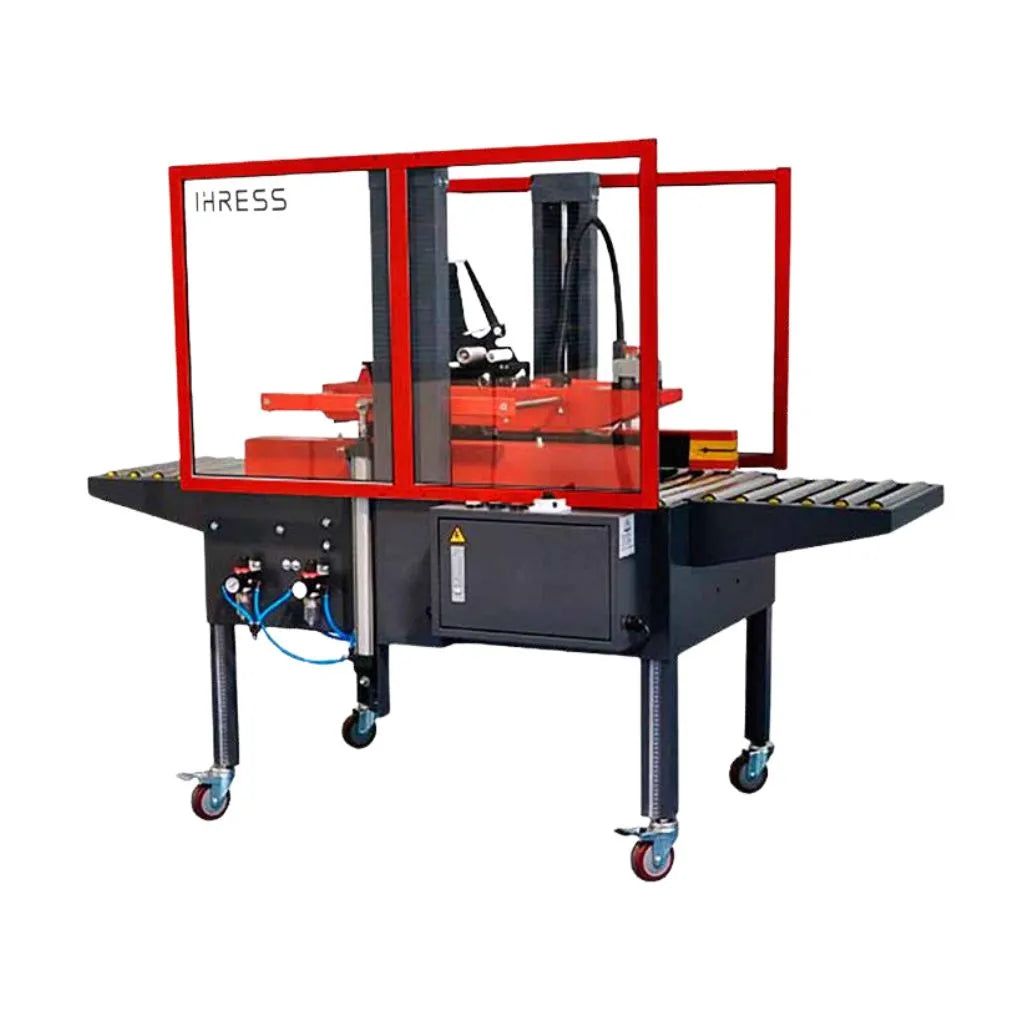

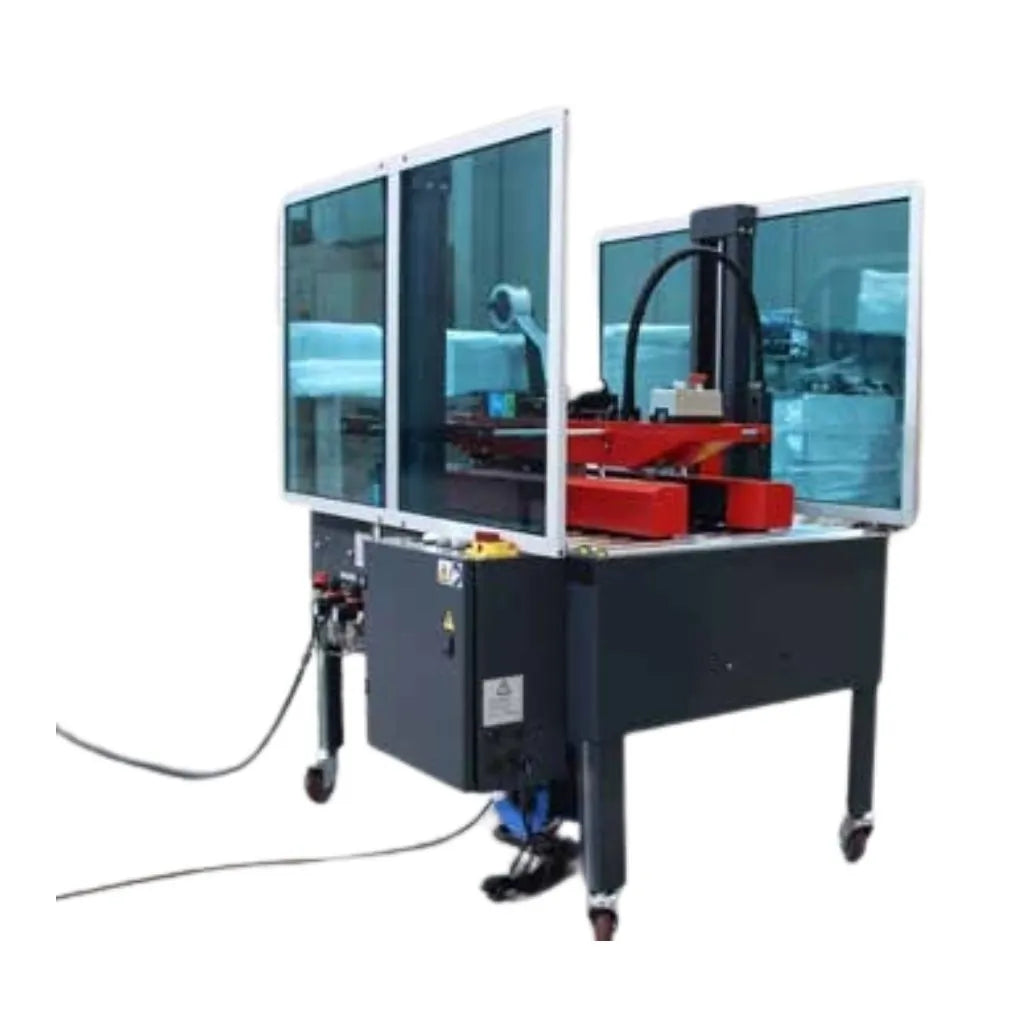

iP25 standard

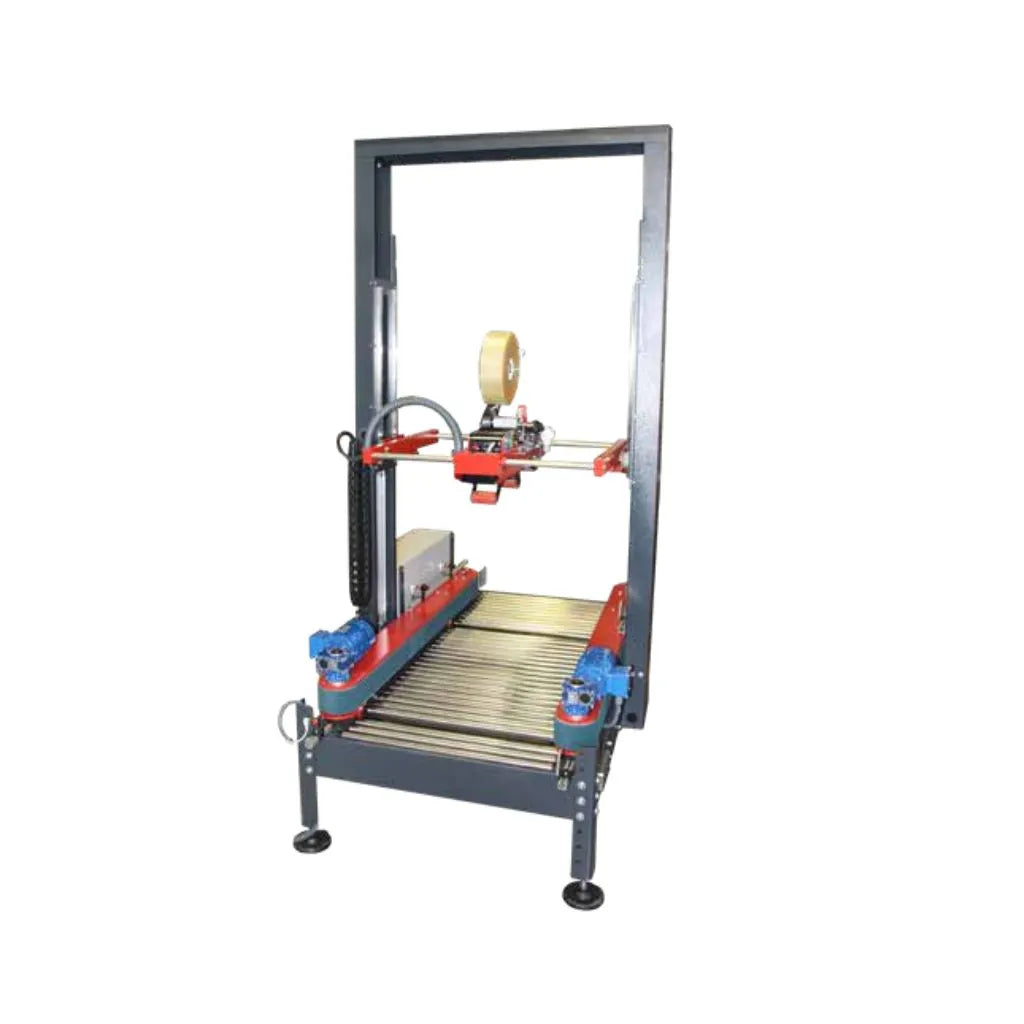

iP25 XL



Optional

Infeed/outfeed free rollers

Extensible free wheels outfeed conveyor from 1,2 m to 4,8 m

iP15S INOX

iP15S standard configuration



Standard Machine Layout
