TECHNICAL CHARACTERISTICS OF THE STANDARD MACHINE

· Dimensional adjustment: Manual
· Carton sealing top and bottom.
· Carton dragging by side belts with independent motors
· Adjusting working height from 570 mm to 800 mm
· Interchangeable taping head which allows using tape from 48mm to 72 mm width.

Dimensions of admissible boxes RSC or B1

· Length: 150/400 - 700 mm*
· Width: 115 - 510 mm
· Height: 150 - 500 mm

* The maximum length of the box will depend on its width, its maximum length being 700 mm with 115 mm wide boxes and 400 mm with 510 mm wide boxes

Other dimensions on request (can be extra cost)

The quality and format of the cases must be verified and approved by the IHRESS technical office



Sealing process

Sealing head

iP35 with roller carriage

iP25 XL

Hot Melt Sealing (OPTION)

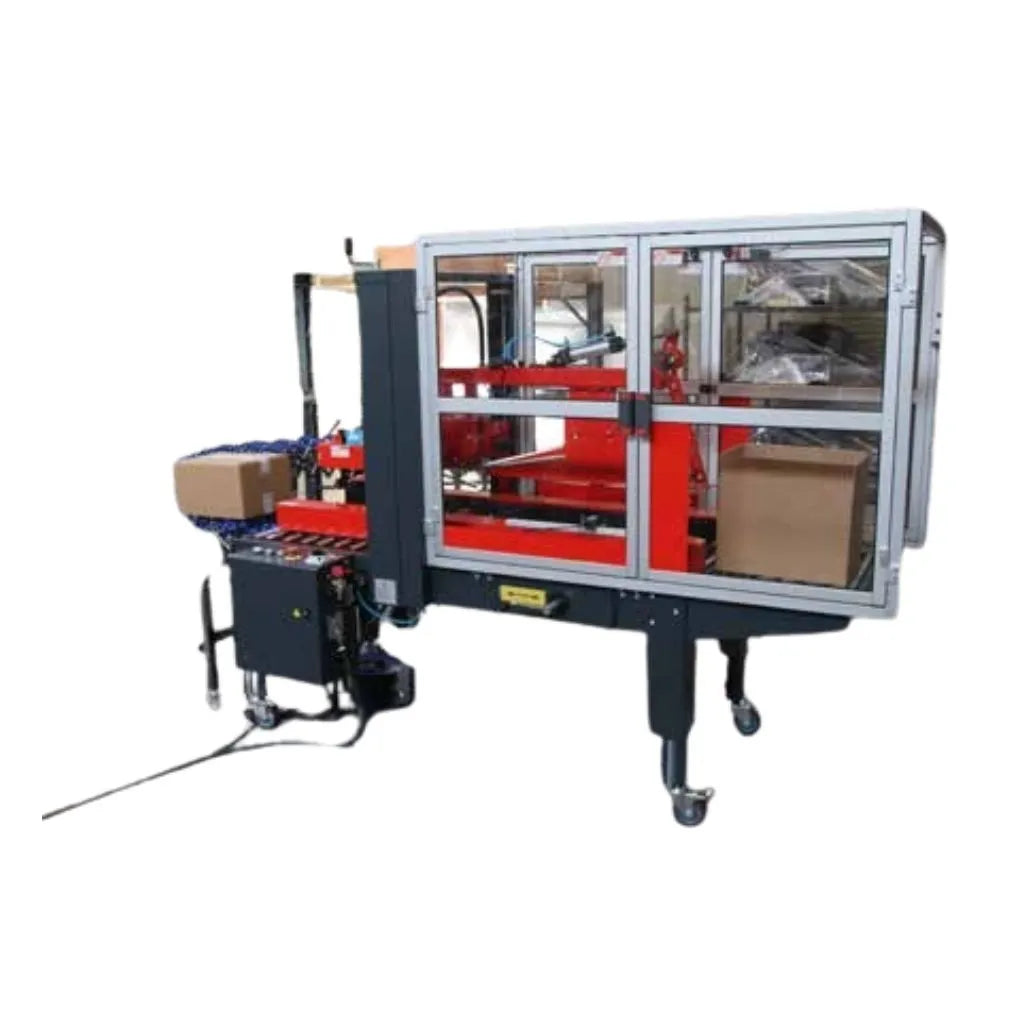

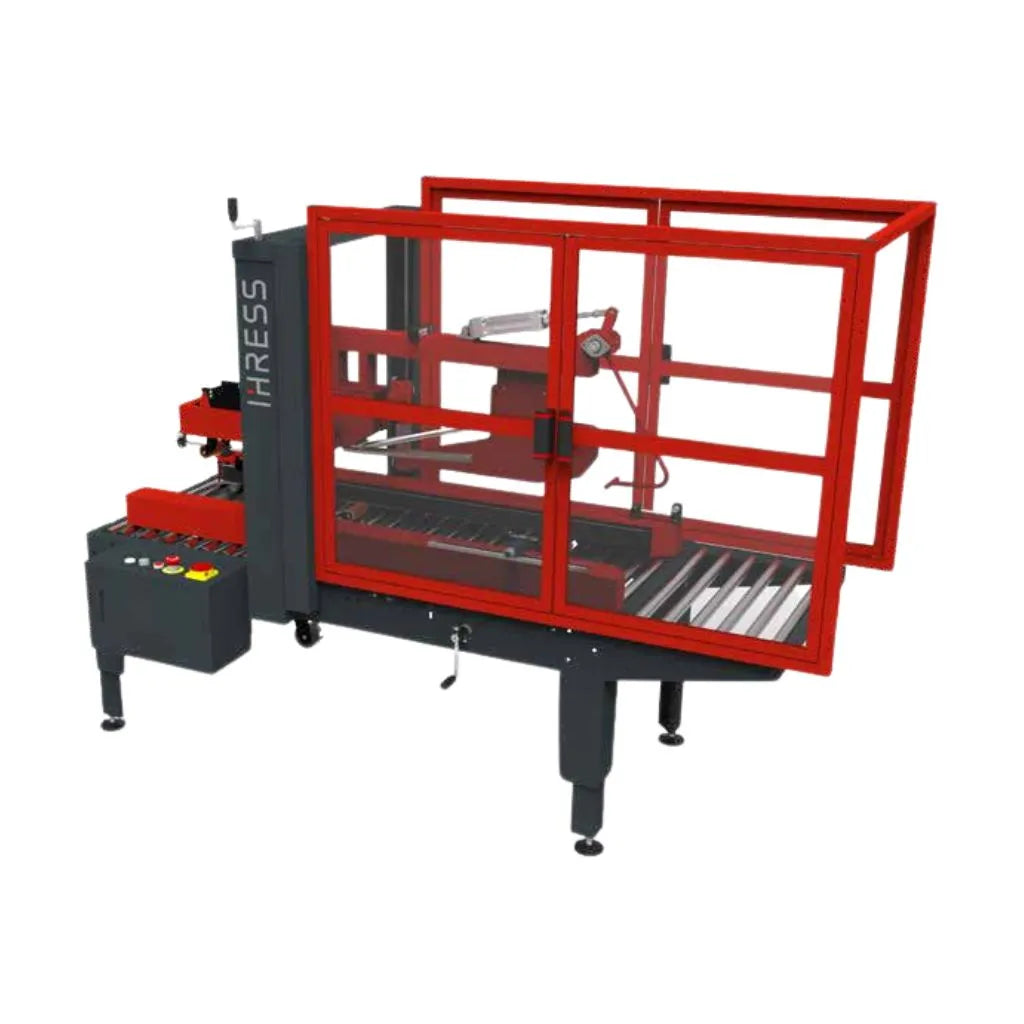

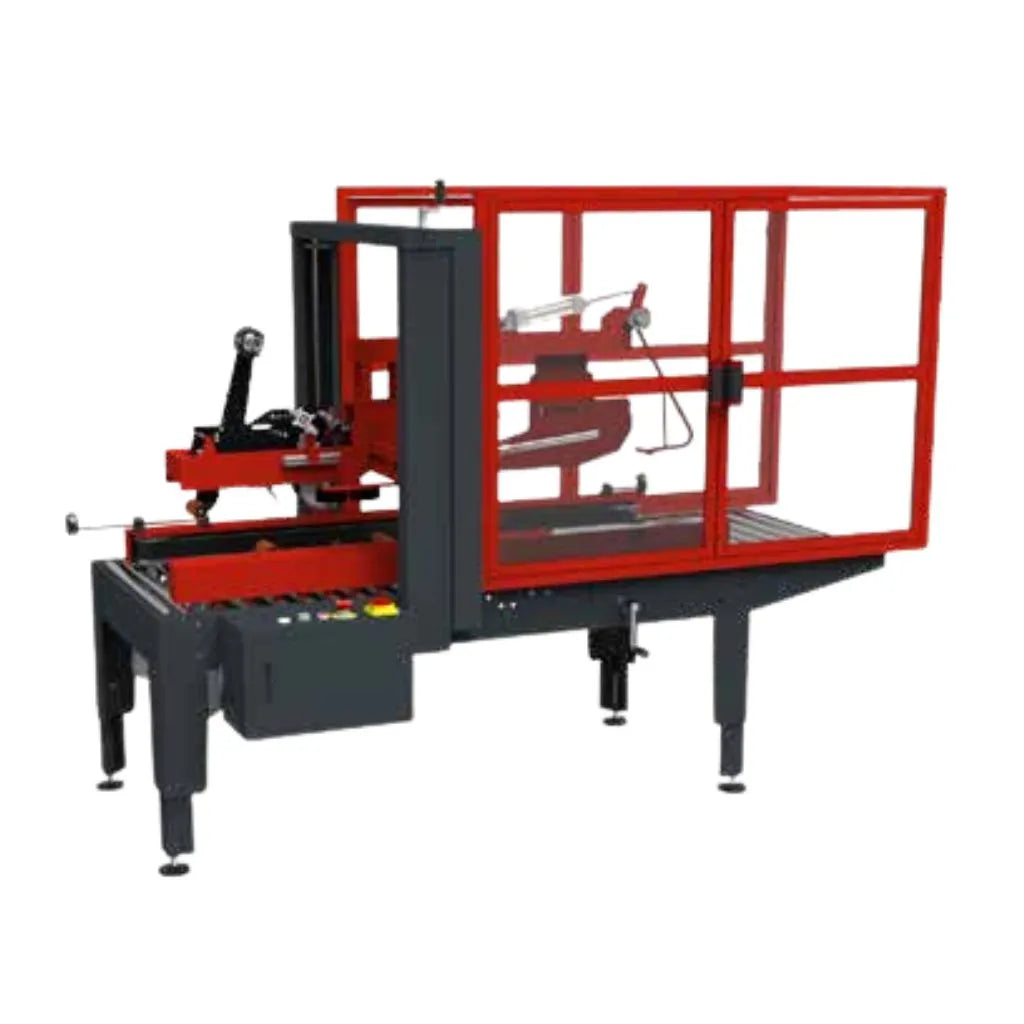

iP35 standard





Standard Machine Layout
