JET3 UP

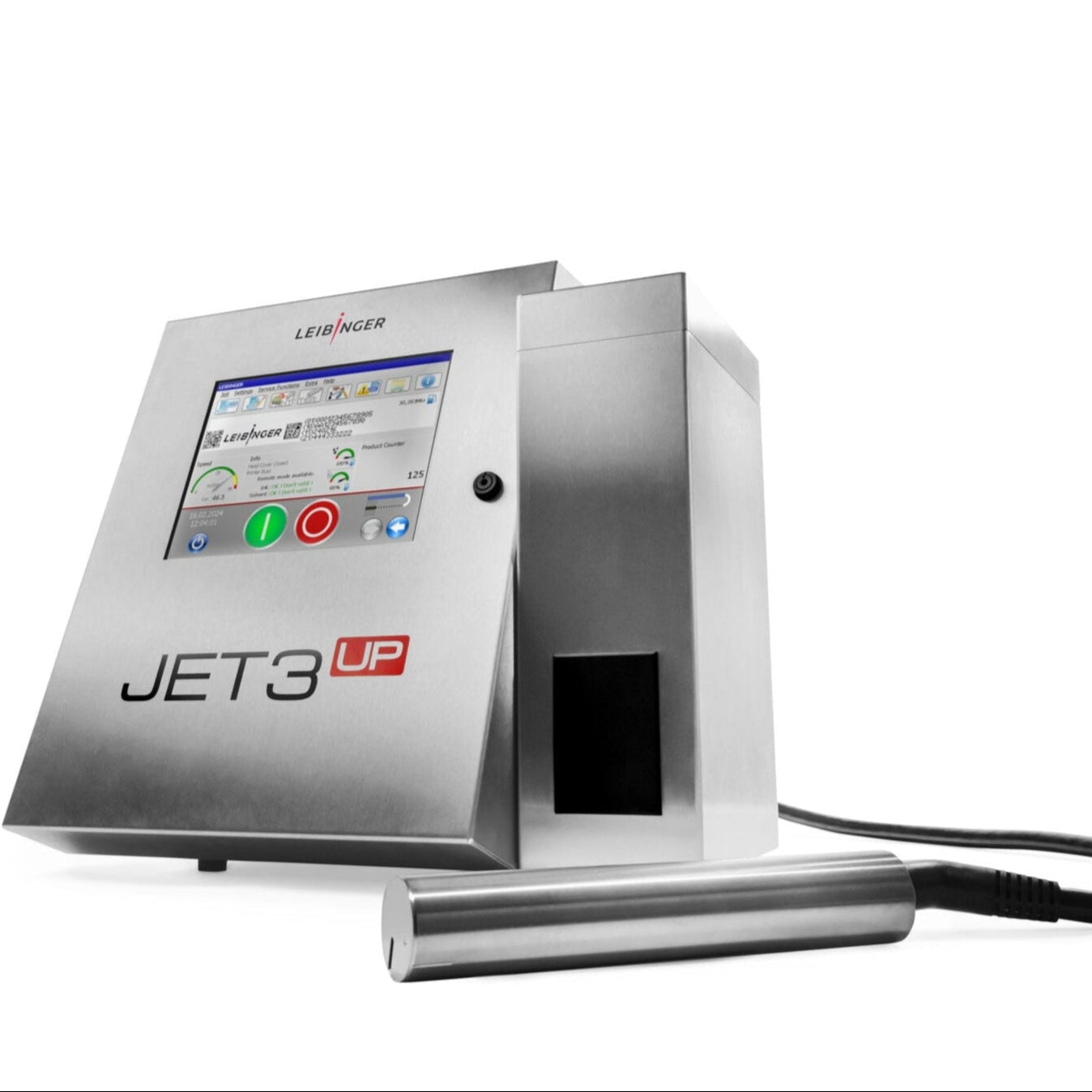

The LEIBINGER JET3up is a high-performance continuous inkjet (CIJ) printer designed for industrial marking and coding applications. It offers precise, non-contact printing on various surfaces, including metals, plastics, glass, and more. The JET3up provides high-speed printing of barcodes, serial numbers, logos, and expiration dates, making it ideal for industries such as food, beverage, pharmaceuticals, and automotive. Its advanced software, intuitive touchscreen interface, and self-cleaning printhead ensure reliable operation, minimal maintenance, and easy integration into production lines.

The LEIBINGER JET3up industrial inkjet printer is the perfect solution for all your product marking requirements thanks to its wide variety of functions. Glass, films, cans, cardboard, cables, wood, plastics, metal and steel are marked without contact by the JET3up continuous inkjet printer (CIJ printer) during ongoing production. Special inks are used that dry in less than one second. At speeds of up to 10 m/s, any product surface—convex, concave, rough or smooth—can be marked with fixed and variable data.

Non-contact marking at up to 10 m/s
The ink does not dry out thanks to the automated Sealtronic nozzle seal
Over 800 software functions included

Thanks to the development and production of all printer components in Germany, industrial inkjet printers from LEIBINGER represent the highest level of quality and reliability in product marking. The automated Sealtronic nozzle seal always prevents the ink in the printhead from drying out. Together with Clean Instant Start and Stop Technology, it also ensures that the small-character inkjet printer start up on the production line every time without needing maintenance. The Sealtronic nozzle and integrated Solvent Saving Mode keep solvent consumption to a minimum to reduce operating costs. In addition, solvent consumption savings of up to 50% can be achieved by using the Ecosolv option.

Highest availability: Automated 'Sealtronic' nozzle seal
Equipped with the automatic SEALTRONIC nozzle sealing system, the JET3 UP is ready to print in just a few seconds and always begins with a clean print image. This unique technology worldwide ensures 100% protection against ink drying out - even after prolonged downtime. Time-consuming and labor-intensive rinsing cycles and daily servicing are eliminated. And printer-related production losses are a thing of the past.
Options for the LEIBINGER JET3up
Nozzle size: 50 µm, 60 µm, 70 µm
Umbilical, length: 3 m, 6 m or 10 m
Umbilical, outlet: Straight, 45° or 90° angle
Head pressurization: Internal or external
EcoSolv, solvent recycling system
Electronic fan cabinet for extremely warm environments
Additional interfaces for activating additional printers
Precision print head
Special print head with side umbilical outlet
Intuitive operation
Just a single push of a button starts the JET3up industrial inkjet printer, and it is ready to print in less than a minute.

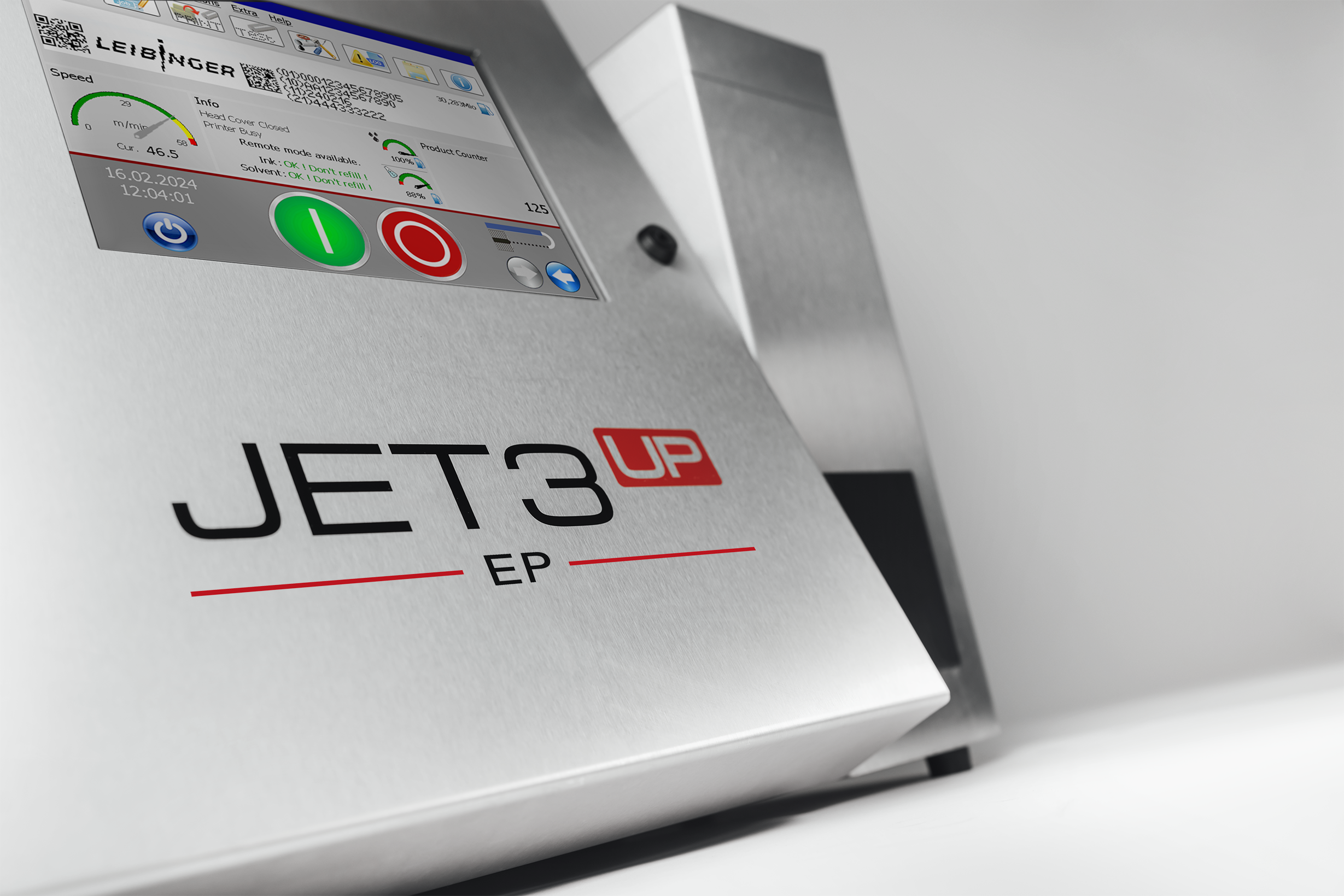

Windows-based interface and 10.4" touchscreen display
Large operating elements and wide variety of menu languages
User-defined interface with fill level and speed display, etc.
Customizable interfaces for direct access
Illustrated operator instructions
The right function for every requirement
Easily legible font types
Height of the fonts: 5-32 drops
Up to 5-line texts can be printed
Prints all major barcodes and DataMatrix codes (ECC200, GS1, EAN/ECC)
Graphics and font editor
BatchJob function: A list of predefined jobs is printed in succession. A separate PrintGo signal triggers each individual job. Repetitions of individual print jobs can be easily entered into the list.
JobSelect, a function for external job selection: You can select a certain job from a predefined list using external signals (PLC). The job is printed with the next PrintGo signal. You can control up to 1024 jobs using 10 digital input signals.
Shoot and print function: Instead of selecting a job number manually, simply load the corresponding print job using a handheld scanner.
Flexible Integration with variable interfaces
Due to the many, multifunctional interfaces on the back of the industrial inkjet printer, the LEIBINGER JET3up can be easily linked to existing machines or incorporated into a higher-level control system
Interfaces on the LEIBINGER JET3up: USB, Ethernet, RS232, Output, Input, Encoder, PrintGo and cascading outputs.
The round and compact print head can be installed in any direction—even printing upward onto the bottom of the product.
Wide ink selection
Variety of colored inks and soft pigmented inks
Fast-drying solvent inks
MEK-free, ketone-free and alcohol-based inks
Temperature-resistant inks
Security, color changing, sterilization, adhesive and alcohol-resistant inks, fluorescent
PVC inks (transfer-resistant)
Food-grade ink and food packaging inks
Customized inks
Washable inks
Ink colors: Black, yellow, red, blue, green
Options for the LEIBINGER JET3up
Nozzle size: 50 µm, 60 µm, 70 µm
Umbilical, length: 3 m, 6 m or 10 m
Umbilical, outlet: Straight, 45° or 90° angle
Head pressurization: Internal or external
EcoSolv, solvent recycling system
Electronic fan cabinet for extremely warm environments
Additional interfaces for activating additional printers
Precision print head
Special print head with side umbilical outlet
The advantages of the JET3up series at a glance
The automated ”Sealtronic“ nozzle seal in the LEIBINGER industrial inkjet printers ensures that ink does not dry out, even during lengthy breaks in production
Windows-based touchscreen display for convenient operation
Interfaces such as Ethernet and I/O signals make integration into a production machine easy
Height of the fonts: 5-32 drops
Up to 5-line texts can be printed
Over 800 user-friendly functions
Non-contact marking at up to 10 m/s
2-year warranty
All software updates included
Fair, transparent maintenance
Easy integration thanks to a wide variety of interfaces
