Metal Shark® Combi

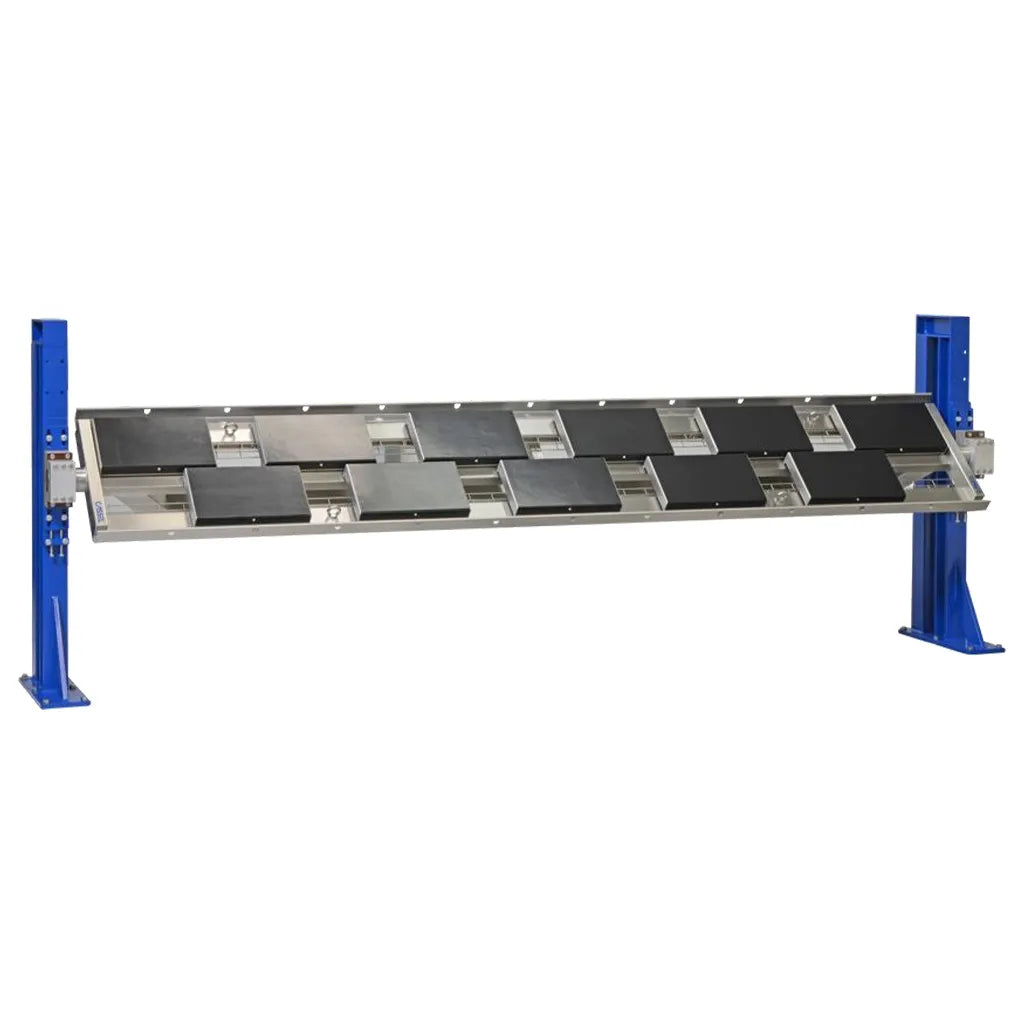

The METAL SHARK® COMBI is a swiveling flat plate sensor that is typically used over fiberwood/plastic boards or fabric-, nonwoven-, paper- or plastic-webs. It detects the smallest metal particles from 0.5 mm and localizes their position in defined
segments across the web.
The METAL SHARK® COMBI is commonly available in widths up to 7.0 m/23 ft. It can also be operated in humid workplaces with ambient temperatures from -10°C/14°F to +40°C/104°F and product temperatures up to 65°C/149°F.


Included

  • Detection unit consisting of a rotatable traverse with flat plate sensors and suspension
  • Controller METAL SHARK®, PC with Windows Pro,
    15" monitor and keyboard in control cabinet
Inquire Now

Features

  • Maximum search performance with highest reliability in the entire detection area due to 4-quadrant technology
  • Simple setup with TeachAssistant
  • Memory for up to 250 products
  • Easy to use with intuitive and multilingual menus
  • 4-level password system, automatic log out after time lapse
  • Sensitivity: Detects iron from 0.5 mm and stainless steel from 0.9 mm

Highlights

  • Rotatable single sided sensor adapts perfectly to vertical or inclined product flow, available in widths up to 7 m / 23 ft.

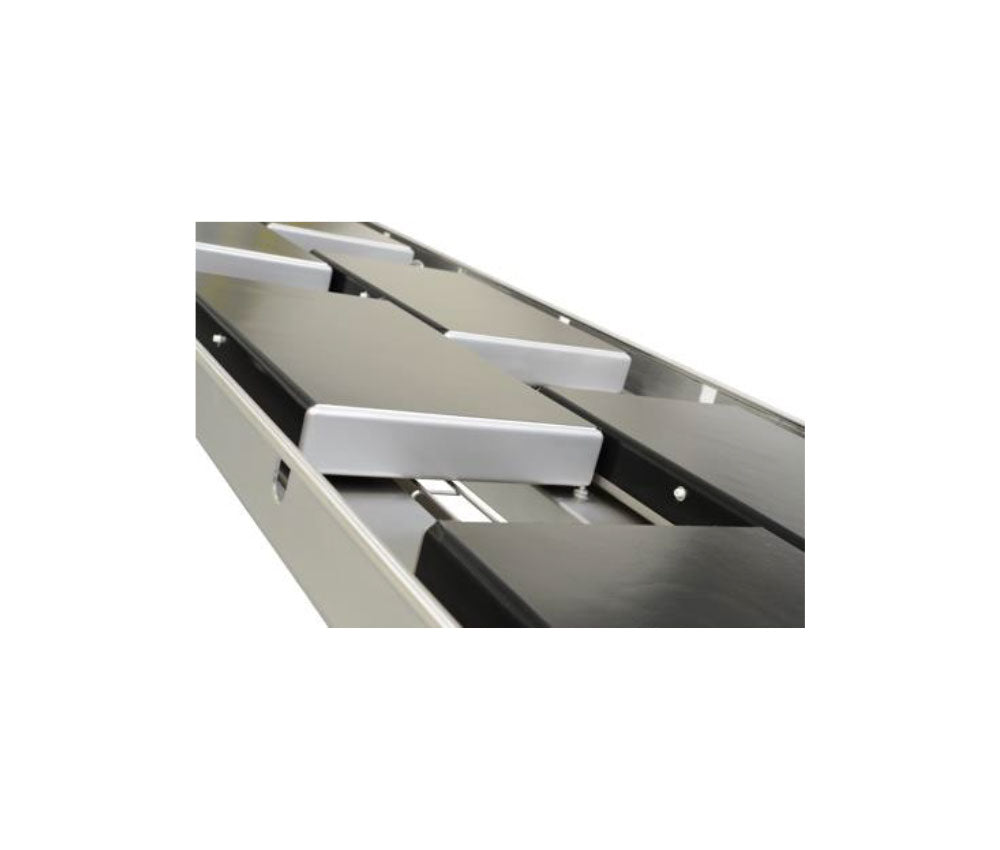

  • Overlapping multiple sensor heads allow for operators to identify contaminant position across the web width, potentially saving valuable material.
  • Intuitive control and easy installation with autocalibration and Teach Assistant
  • Automatic balance and calibration controls make the COMBI system essentially maintenance free.
  • Documentation of all events and metal messages
  • Optional: Data transfer to USB interface or connection to the company network via SHARKNET® software
  • Cyclical function monitoring with Performance Validation System (PVS)
    The detector’s design and dimensions will be customized to the production requirements.

Application

  • Monitoring of flat products that are conveyed in webs or plates
  • Quality assurance for incoming goods, outgoing goods or during running production
  • Detection of broken needles and other metal parts in the textile industry
  • Machine protection, e.g. in fleece or plate processing

Customization
The METAL SHARK® COMBI will be customized exactly to the production requirements

  • freely selectable widths from 2 to 7 m and more
  • freely selectable number of detection units

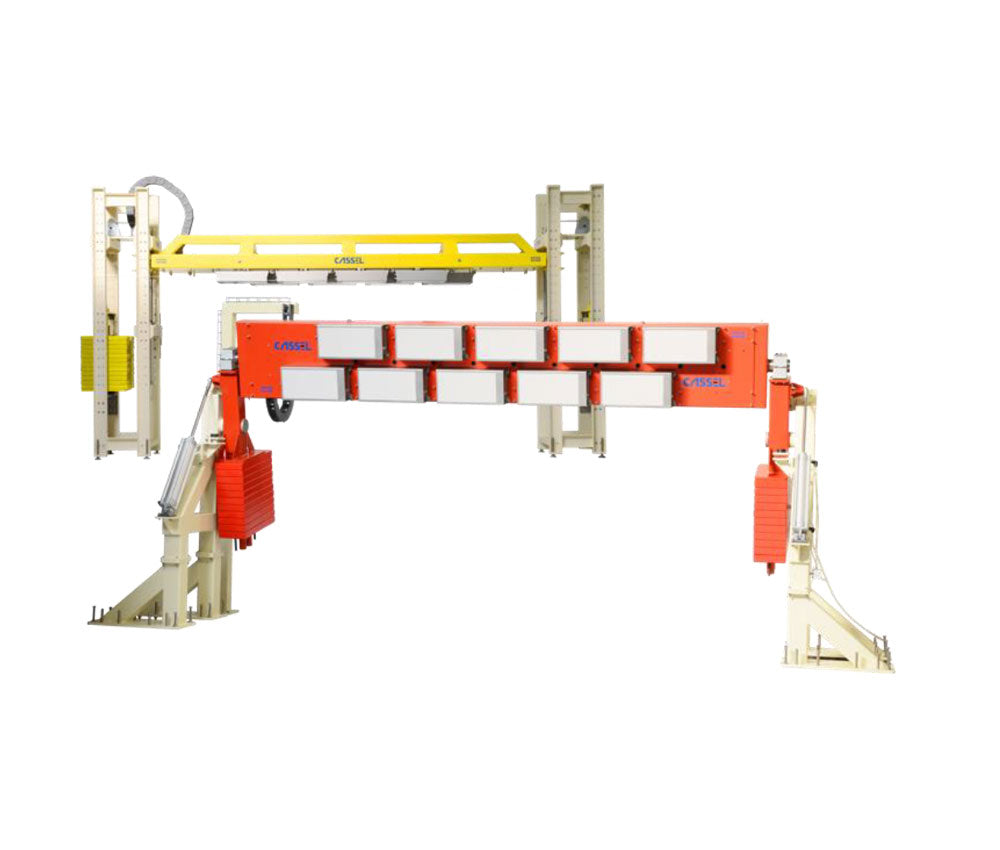

  • individual support construction in adapted height, optionally available with vertically lowerable cross-beam or with lifting arms

Industries

  • Paper
  • Textile and fleece
  • Wood processing (particle boards)
