Cassel

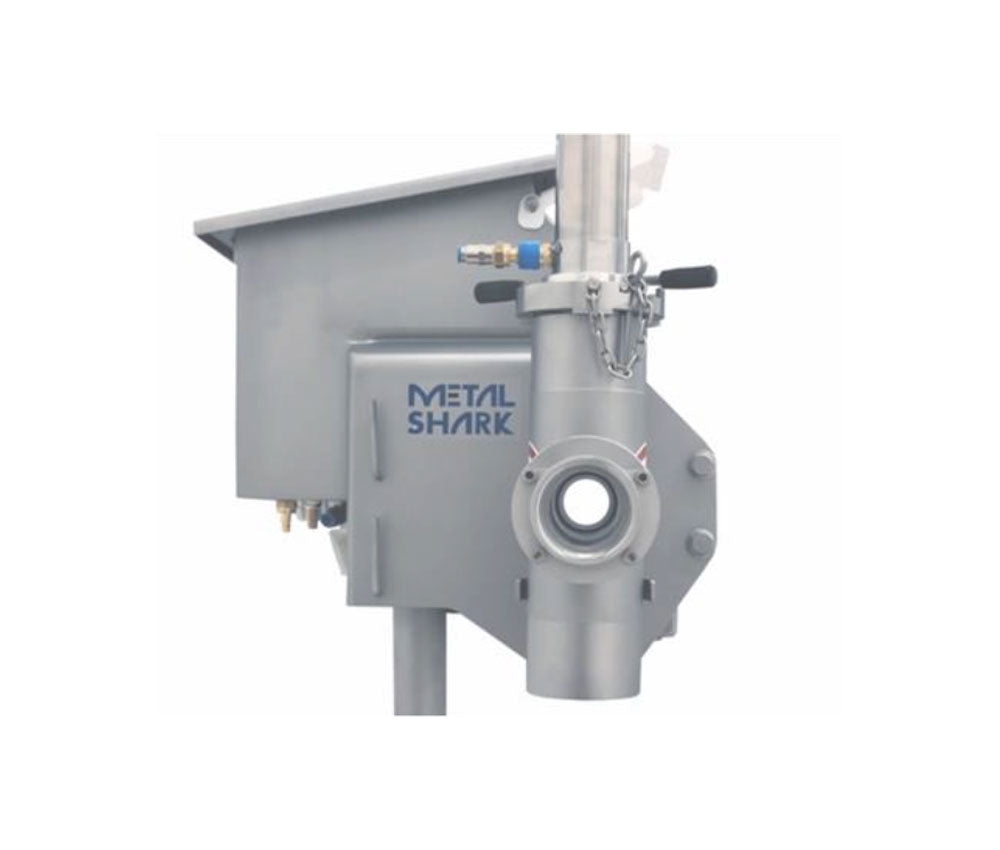

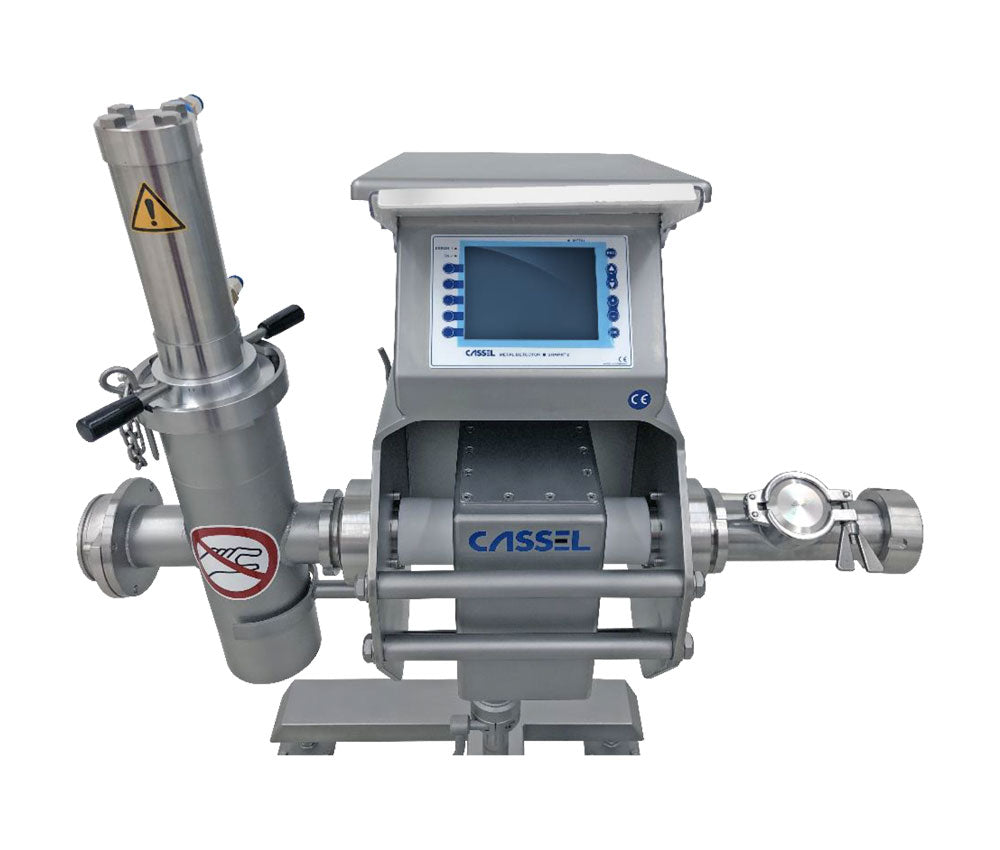

Metal Shark® In Meat

Metal detection for the sausage industry

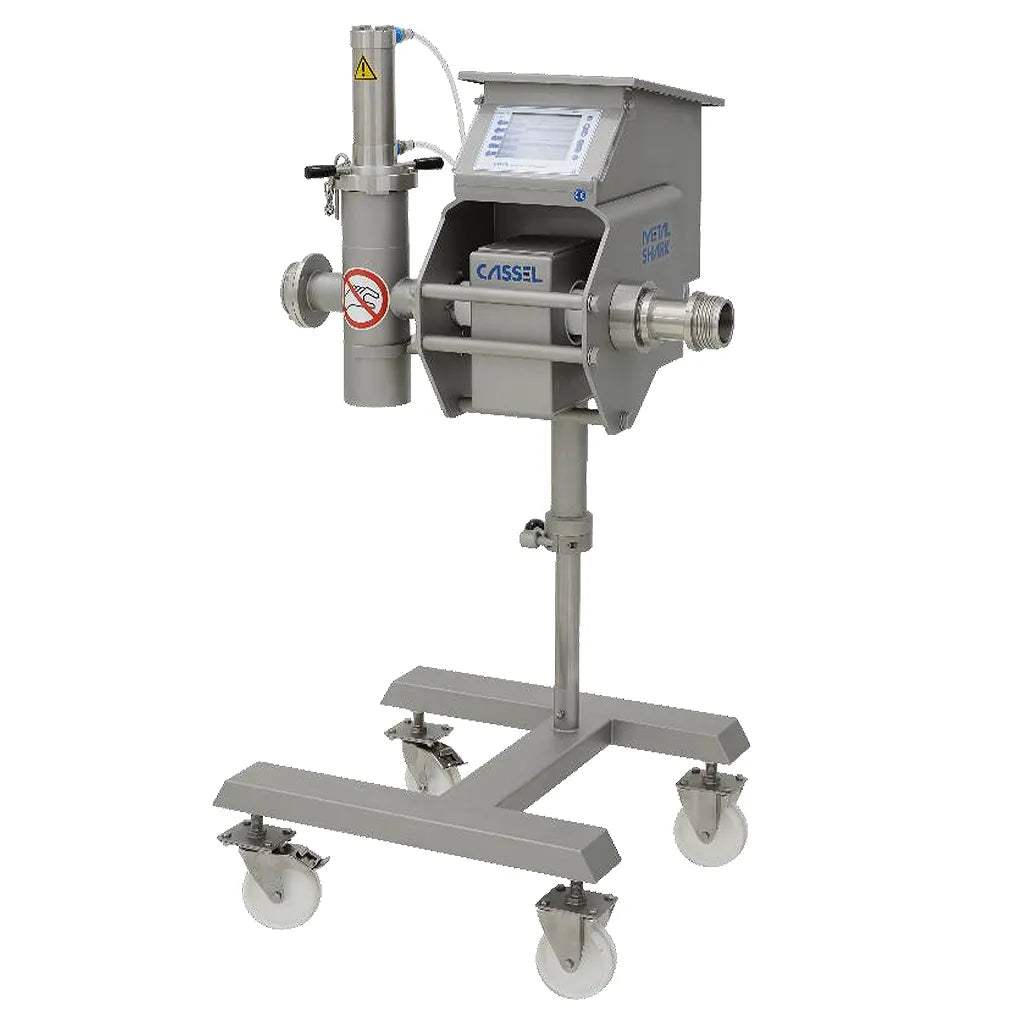

Compact metal detector for sausage stuffers and sausage meat with mobile base on casters. The stand with integrated gas spring offers easy height adjustment from 85 to 115 cm (33.5 in. - 42.3 in.) height.
The METAL SHARK® IN Meat is placed between the filler and the clipping machine and can be supplied with or without reject device.
The unit is easy to clean and complies with FDA standards.

Included

  • Sensor head IN incl. mobile frame with gas spring for height adjustment
  • Control unit METAL SHARK® 2A type IN Meat

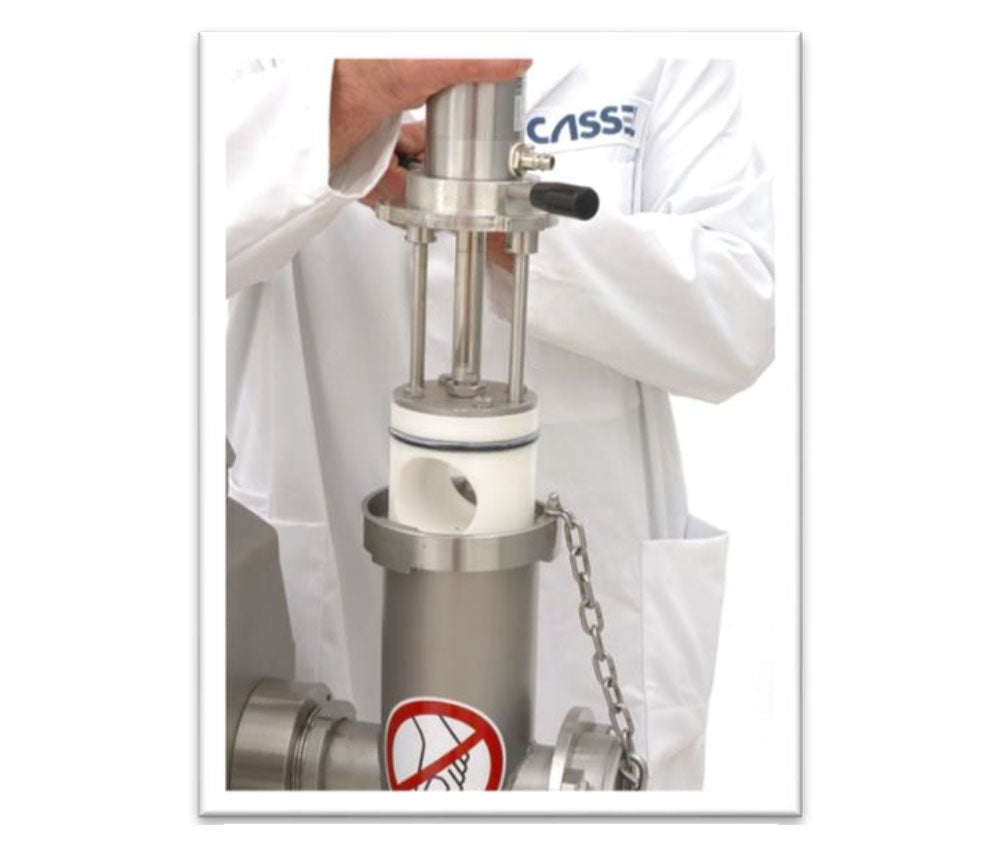

  • Ejection unit (piston valve) optional
  • Pipe piece made of polyoxymethylene (POM) for detection zone
  • Suitable connectors and plugs for direct integration into the existing production line

Highlights

  • 4-quadrant technology provides maximum detection performance with the highest available reliability in the detection area
  • Storage space for up to 250 products
  • Easy to use with intuitive and multilingual menus
  • 4-level password system, automatic log out after time lapse
  • Documentation of all events and metal messages
  • IFS5 and HACCP reports available on the display at the touch of a button
  • Optional: Data transfer to USB interface or connection to the company network via SHARKNET® software
  • Cyclical function monitoring with Performance Validation System (PVS)

Features

  • Reliably finds even the smallest metal contaminants in sausage meat
  • Easy to integrate into all common piping systems
  • Stainless steel housing and frame are robust and easy to clean - ideal for the meat industry
  • Easy height adjustment due to integrated gas spring
  • Autocalibration and TeachAssistant for intuitive control and easy installation



Application
Monitoring of very heavy, pasty products especially in sausage production. For all products that are closed with clippers. The METAL SHARK® IN Meat is adapted to fillers of the brands:

  • Handtmann
  • Vemag
  • Rex
  • Risco
  • Velati
  • K&G
  • Frey
  • Karl Schnell

Accessories & Extras

  • SHARKNET® access for perfect documentation according to HACCP, IFS or FDA standards
  • More stable frame construction possible
  • Tower stack lamp
  • Makrolon cover for control unit

Industries

  • Meat processing, especially sausage production
