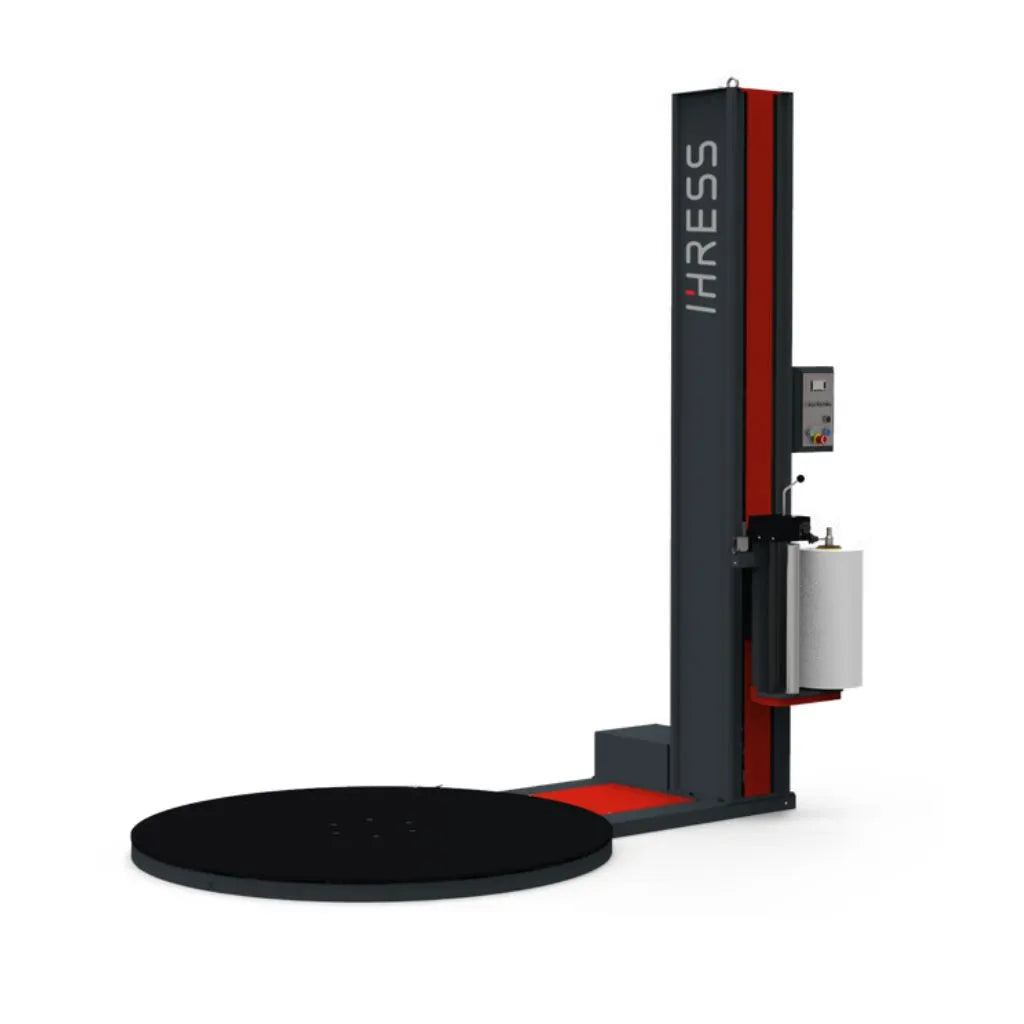

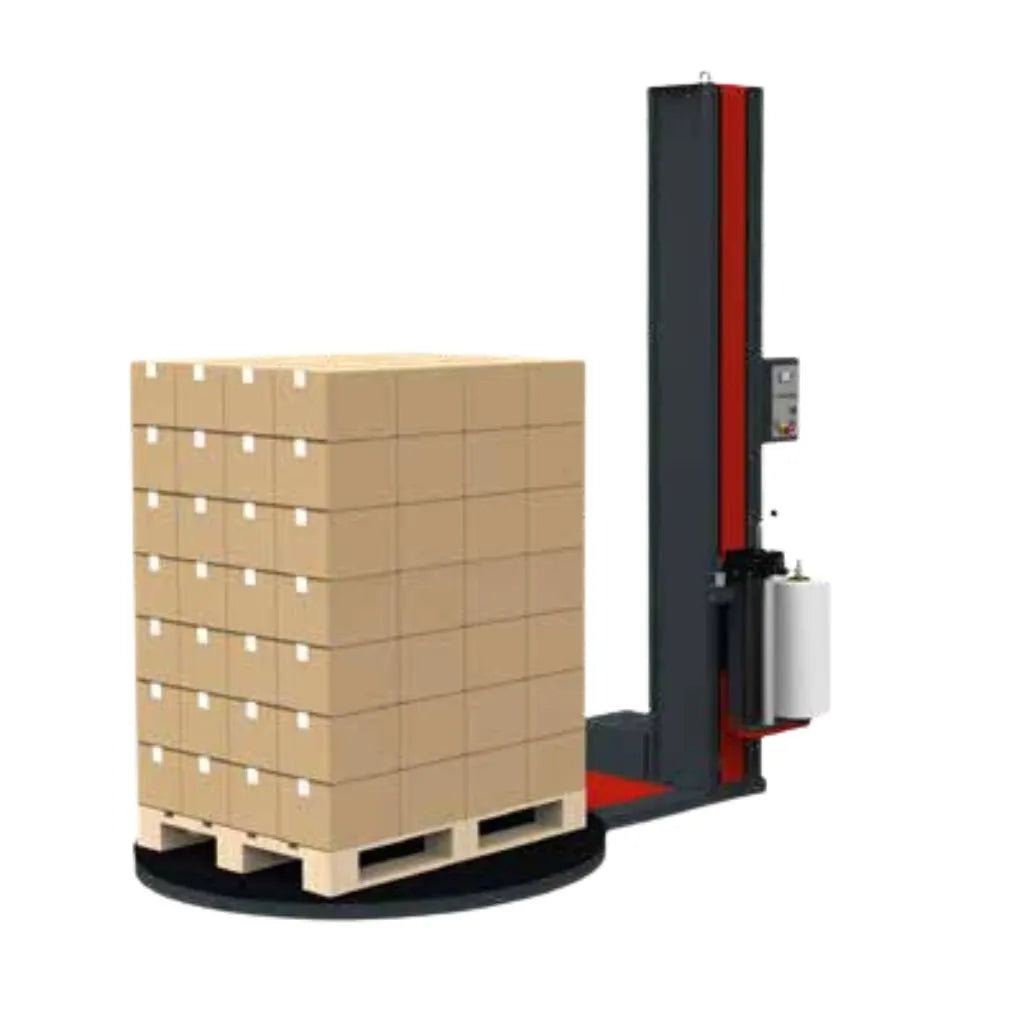

i200
i200

IHRESS

TECHNICAL CHARACTERISTICS OF THE STANDARD MACHINE
• Folding column.
• Powered film carriage with variable speed, placed sidewise.
• Adjustable mechanical film brake with foot trapping detector.
• Automatic load height detection by photocell.
• Turntable dimensions: Ø1.650 mm, 10 mm thick plate.
• Soft start/stop by SCHENEIDER frequency inverter with
return to start position.
• 4 wrapping programs: Single / Cross-wrap/ Cross-plus / Full.
• Wrapping cycles counter.
• Independently adjustable top & bottom reinforcement wraps.
• SIEMENS PLC controlled, with display control panel.
• Independent ascent and descend carriage speed for film saving.
• Reinforcement wraps at any point in the cycle.
• Ergonomically designed control.
• Variable production depending on the operator and
the characteristics of the load.

Inquire Now

FMA Carriage

Adjustable mechanical film brake with foot trapping safety



FMA Carriage

Powered pre-stretch 300% with foot trapping detector (recommended option)



OPTIONAL



Scale with display

Reinforced chassis with integrated weighing scale, with 6 weight cells and display



Platforms

Other diameters:
Ø2.000mm, Ø2.400mm,
Ø3.000mm, ...
Loads up to 3.000 Kg.



Special environments

Explosives: ATEX Temperatures below 0ºC



STAINLESS STEEL

Machine made of stain-less steel 304 for corrosive environments.



OPTIONS AND ACCESSORIES
1. Turntable accessing ramp
2. Embedding frame
3. Scale with display
4. Direct film brake
5. Mechanical film brake (standard)
6. Electromagnetic brake
7. Powered pre-stretch film 300%
8. Twin film holder
9. Powered top platen
10. Powered top platen for flat loads


SPECIAL CUSTOMIZATION ON DEMAND
• Ultrasonic detector for black loads
• Stainlees steel 304
• ATEX explosive environments
• Environments up to -30ºC
• Special heights
• Special platforms
• Ramps and hoists for cargo loading with stackers
• Different pre-stretch ratios 150%, 200%, 300% or 400%
• Carriages for 750 mm or 1.000 mm height film
• PLC extended up to 10 programs
