i300
i300
i300
i300

IHRESS

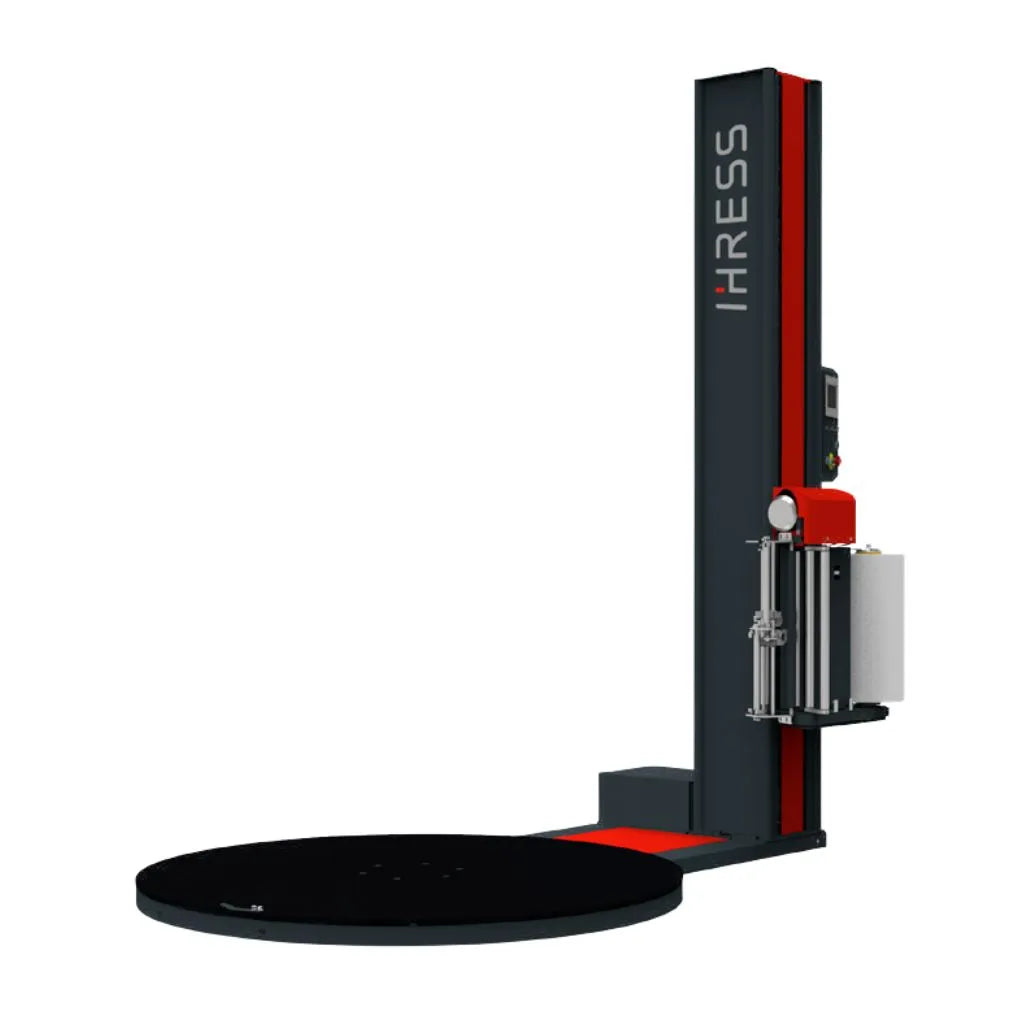

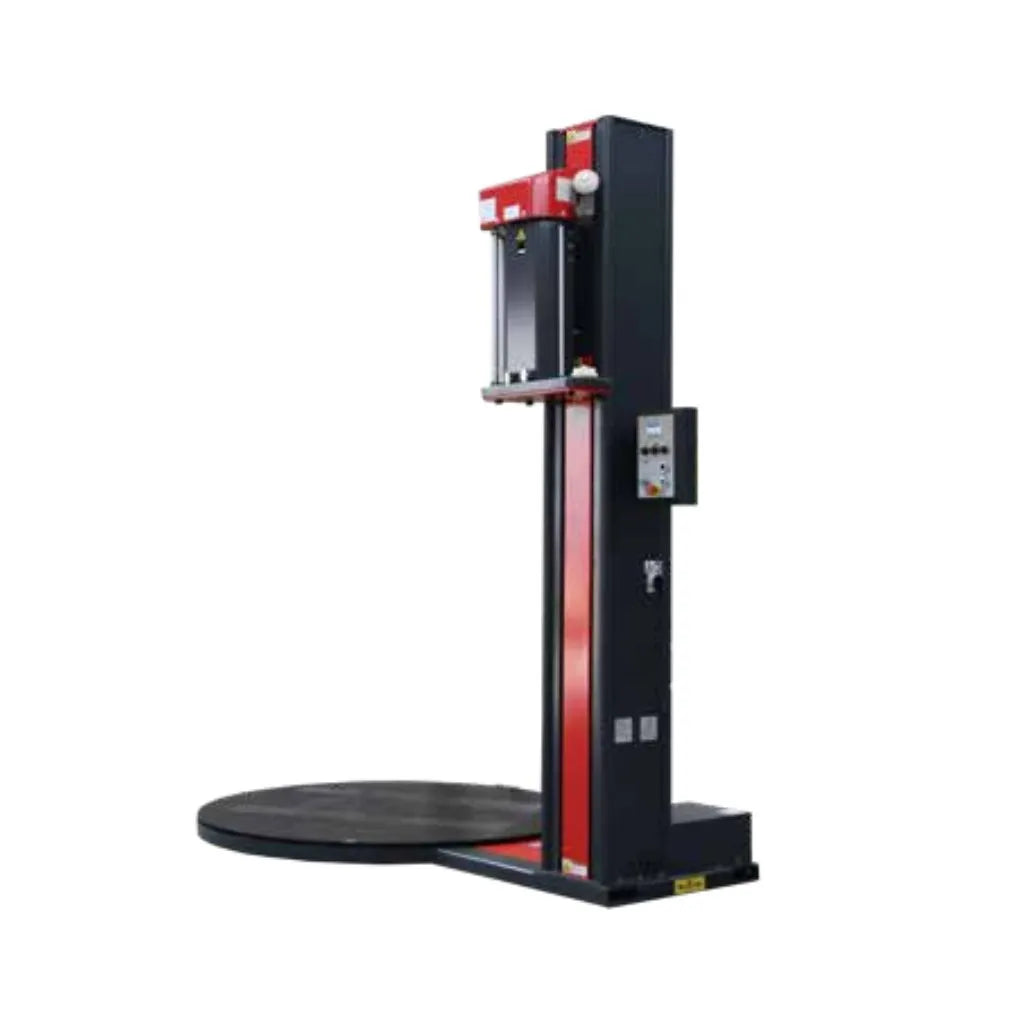

TECHNICAL CHARACTERISTICS OF THE STANDARD MACHINE
• Folding column.
• Powered film carriage with variable speed, placed sidewise.
• Powered pre-stretch 300% with foot trapping detector and roping system.
• Automatic load height detection by photocell.
• Turntable dimensions: Ø1.650 mm and 10 mm thick plate.
• Soft start/stop by SCHENEIDER frequency inverter with return
to start position.
• 10 customizable wrapping programs.
• Wrapping cycles counter.
• Independently adjustable top & bottom reinforcement wraps.
• SIEMENS PLC control and colour LCD touch screen.
• Reinforcement wraps at any point in the cycle.
• Ergonomically designed panel control.
• Variable production depending on the operator and
the characteristics of the load.

Inquire Now

PEM Carriage + Roping system

Powered pre-stretch 300% with foot trapping detector



OPTIONAL



Scale with display

Reinforced chassis with integrated weighing scale, with 6 weight cells and display



Plataforms

Other diameters:
Ø2.000mm, Ø2.400mm,
Ø3.000mm, ...
Loads up to 3.000 Kg.



Special environments

explosives: ATEX Temperatures below 0ºC (down to -30ºC)



Stainless Steel 304

Machine made of Stainless steel 304 for corrosive environments.

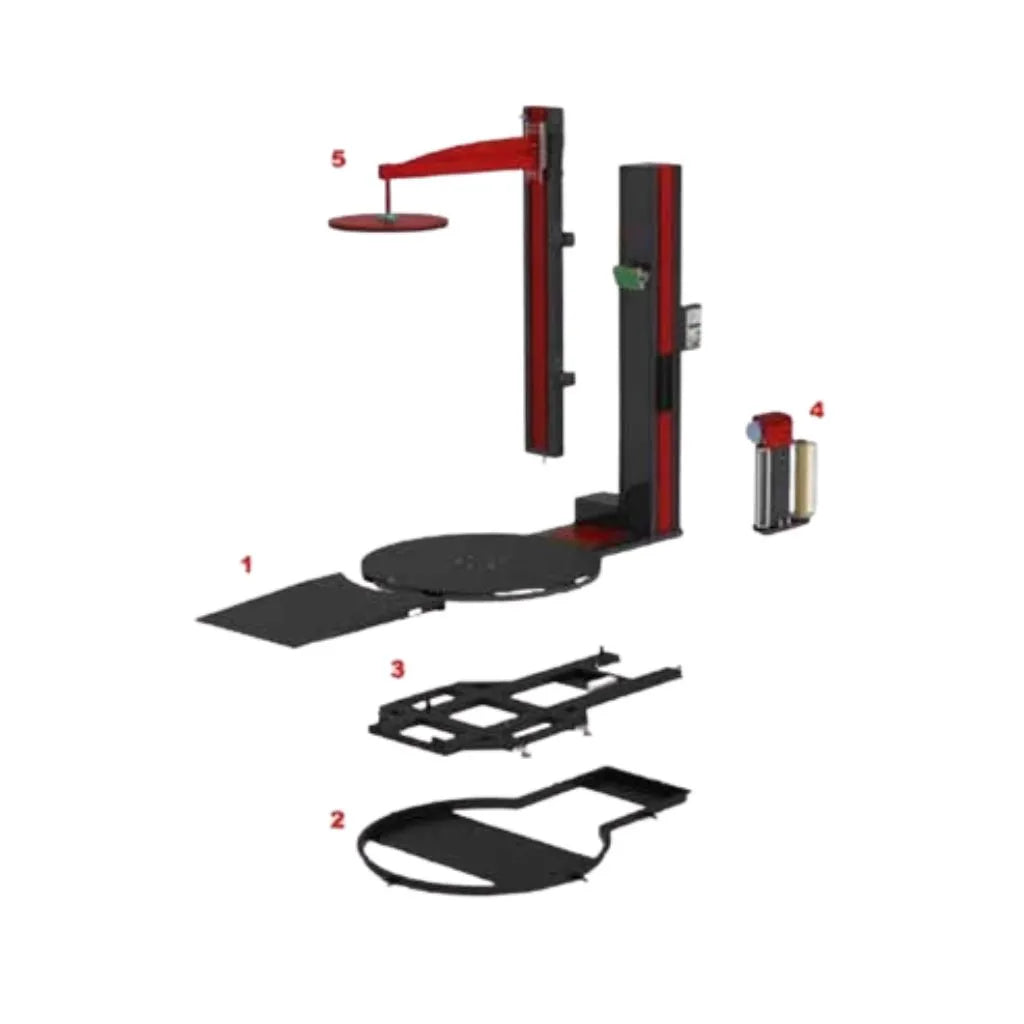

OPTIONS AND ACCESSORIES
1. Turntable accessing ramp
2. Embedding frame
3. Scale with display

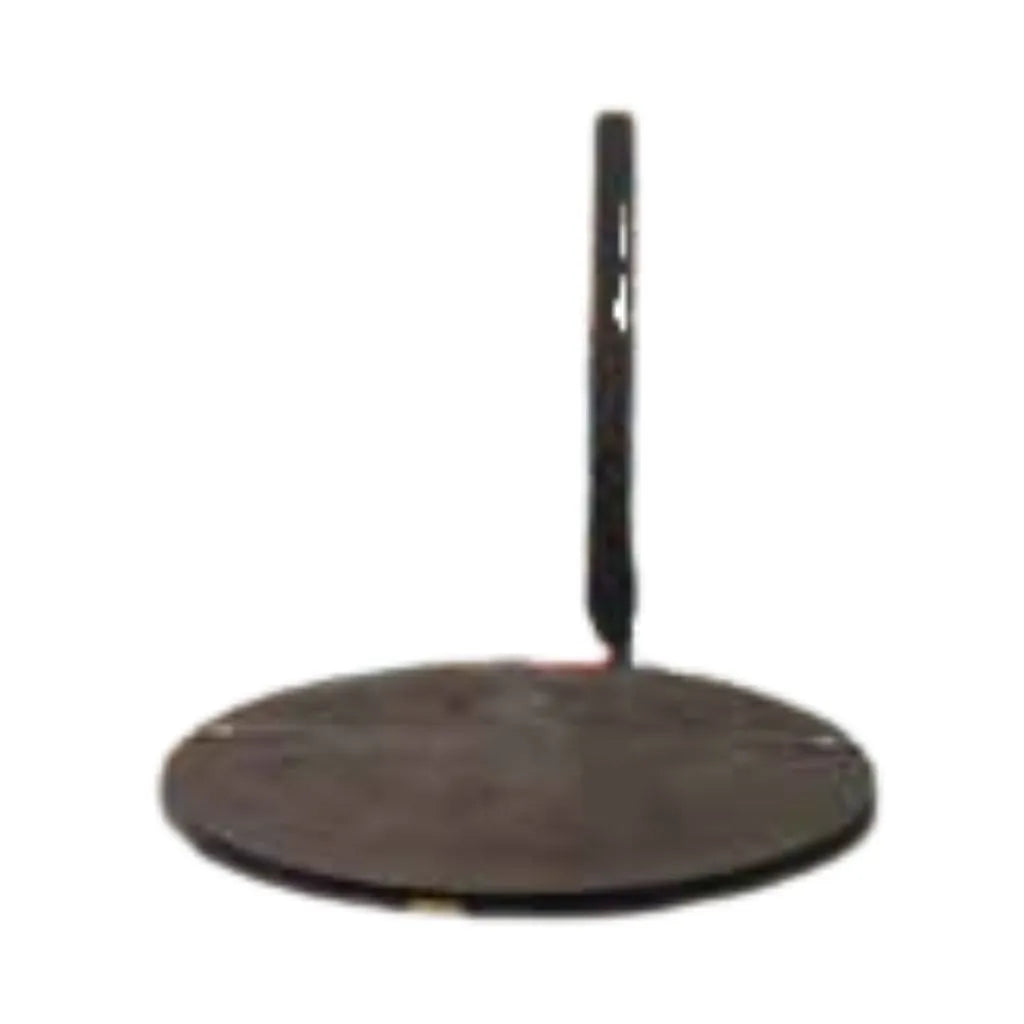

4. Powered top platen


SPECIAL CUSTOMIZATION ON DEMAND
• Ultrasonic detector for black loads
• Stainless steel 304
• ATEX explosive environments
• Enviroments up to -30ºC
• Special heights
• Special platforms
• Ramps and hoists for cargo loading
with stackers
• Different pre-stretch ratios 150%, 200%,
300% or 400%
