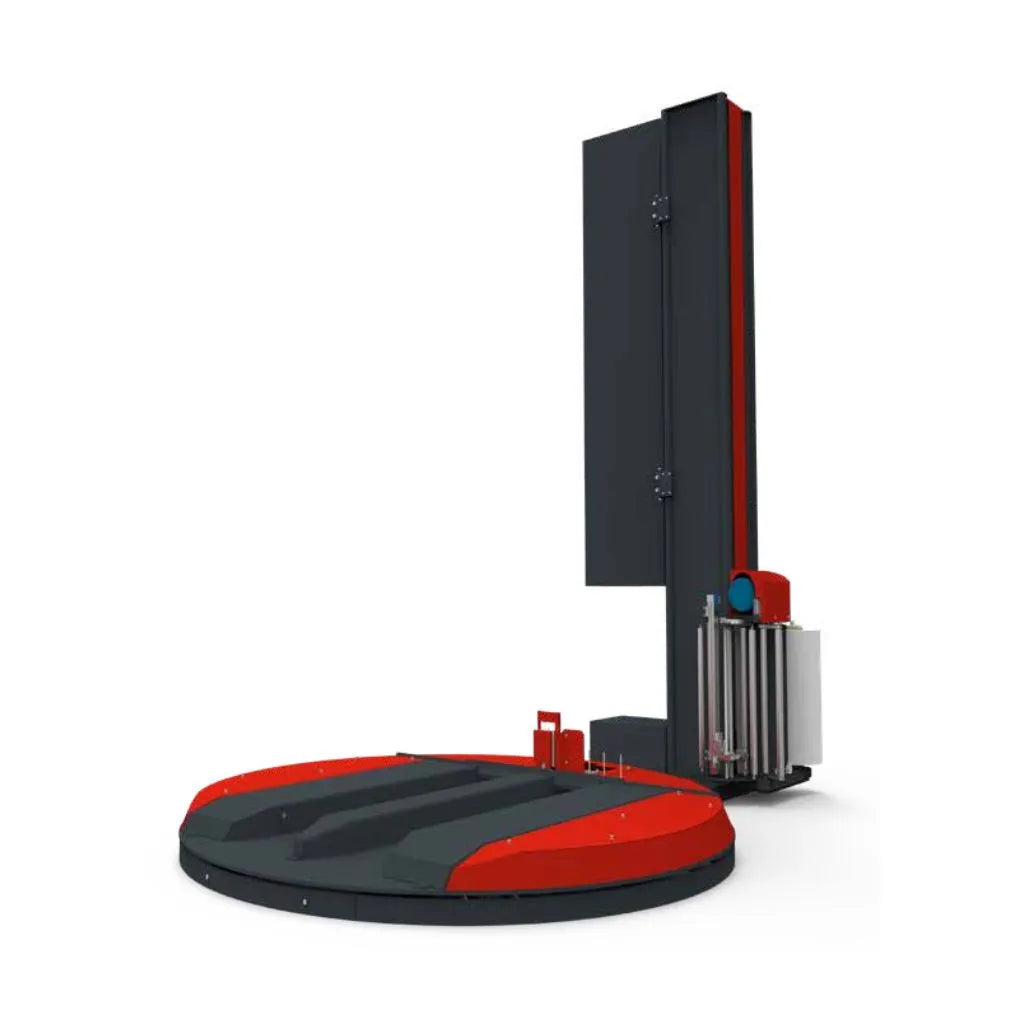

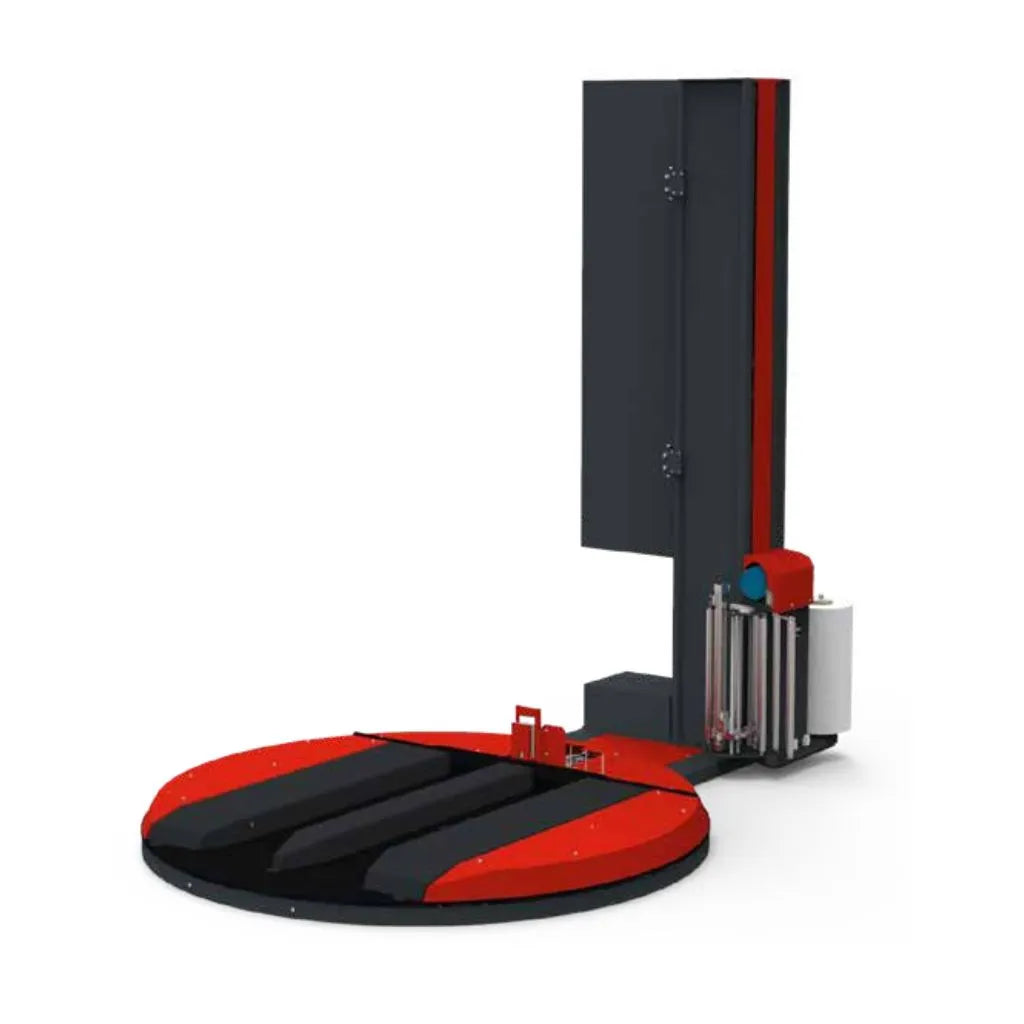

STANDARD MACHINE TECHNICAL CHARACTERISTICS

• Powered film carriage with variable speed, placed sidewise.
• Powered pre-strech 300% with roping system
• 3ALL system: Clamp, cut and weld film
• Initial tail film blower
• Automatic load height detection by photocell.
• Soft start/stop by SCHENEIDER frequency inverter
with return to start position.
• Wrapping cycles counter.
• Independently adjustable top & bottom reinforcement wraps.
• SIEMENS PLC control and colour LCD touch screen.
• Reinforcement wraps at any point in the cycle.
• Ergonomically designed panel control.
• Production up to 15 pallets/hour
(Variable production depending on the operator and the characteristics of the load.)
• 10 customizable wrapping programs by the user:
Initial wraps, upper and final, overwrap time, etc.

OPTIONS AND ACCESSORIES

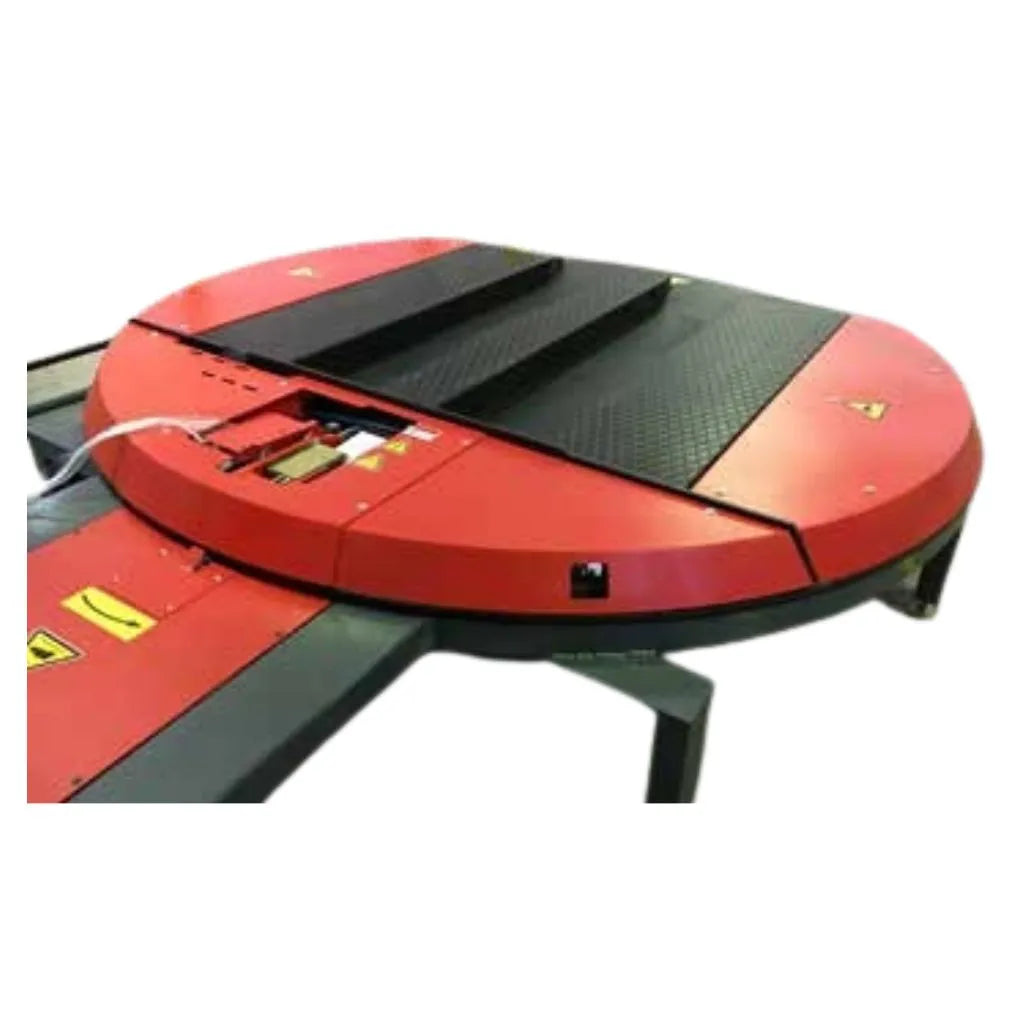

1. Turntable accessing ramp
2. Embedding frame.
3. Scale with display
4. Powered top platen
5. Top sheet dispenser TDM1800



SPECIAL CUSTOMIZATION ON DEMAND

• Ultrasonic detector for black loads
• Stainless steel 304
• ATEX explosive enviroments
• Enviroments up to -30ºC
• Special heights
• Special platforms
• Ramps and hoists for cargo loading with stackers
• Different pre-strech ratio 150%, 200%, 300% or 400%



STANDARD MACHINE LAYOUT
