Evolabel
Belt Applicator

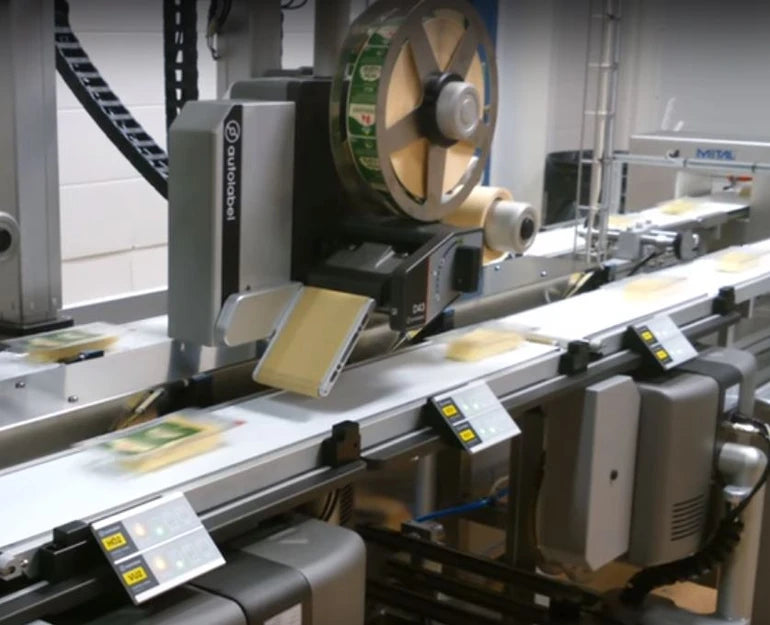

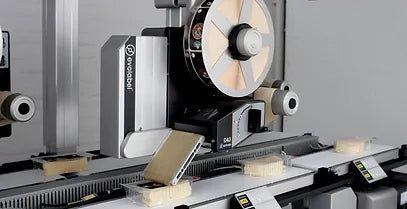

The Evolabel belt applicator in combination with the D43 printer is with its compact size and accurate labeling, perfect for product labeling from below. Depending on label size, the capacity is as high as up to 120 packages per minute.
Specifications

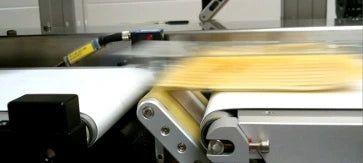

Evolabel belt applicator applies labels with high speed and precision from above, from below or from the side. A vacuum belt transports the label from the printer to the product.
The vacuum belt runs at the same speed as the conveyor and is thus not limited to the print speed of the printer. This gives very accurate label positioning also on extremely light products. Provided the packages has a well-defined edge to trig on, the labeling accuracy is in the area of +/- 0.5 mm.
Several independent vacuum ejectors are integrated into the applicator. This allows the same applicator to handle various label sizes, all from 30x30 mm to 118x150 mm.
The Evolabel belt applicator in combination with the D43 printer is with its compact size and accurate labelling, perfect for product labelling from below. Depending on label size, the capacity is in combination with the D43 high-speed app, as high as up to 120 packages per minute.

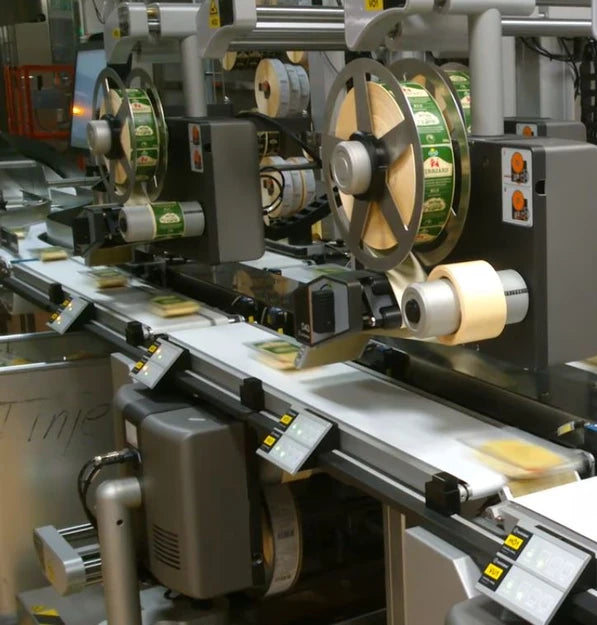

Evolabel supply complete marking stations for secure integration in the production.To give the operator an easy and ergonomic solution for changing label roll, the D43 belt can be mounted on a pneumatic floor stand and holder with swing out function.
The mechanical, electrical and pneumatic interface between the Evolabel applicators and printers are all the same plug-and-play standard.
