Evolabel

QuickTamp Applicator

Fast and friendly Logistics Labeling System for labeling shipping labels on top of boxes in various heights.

e-Commerce drives in-line labeling requirements to higher levels and leading providers of warehouse and distribution solutions identify traditional print and apply systems as bottlenecks. Evolabel eliminates that bottleneck with the QuickTamp - the fast and friendly Logistics Labeling System.

The fast and flexible applicator is based on Evolabels unique Tactile apply solution. It detects not only the product for perfect label application, but also obstacles in its way - which enhances both safety and reliability. With the built-in Co-op function, double or triple the capacity without changing your own software system.

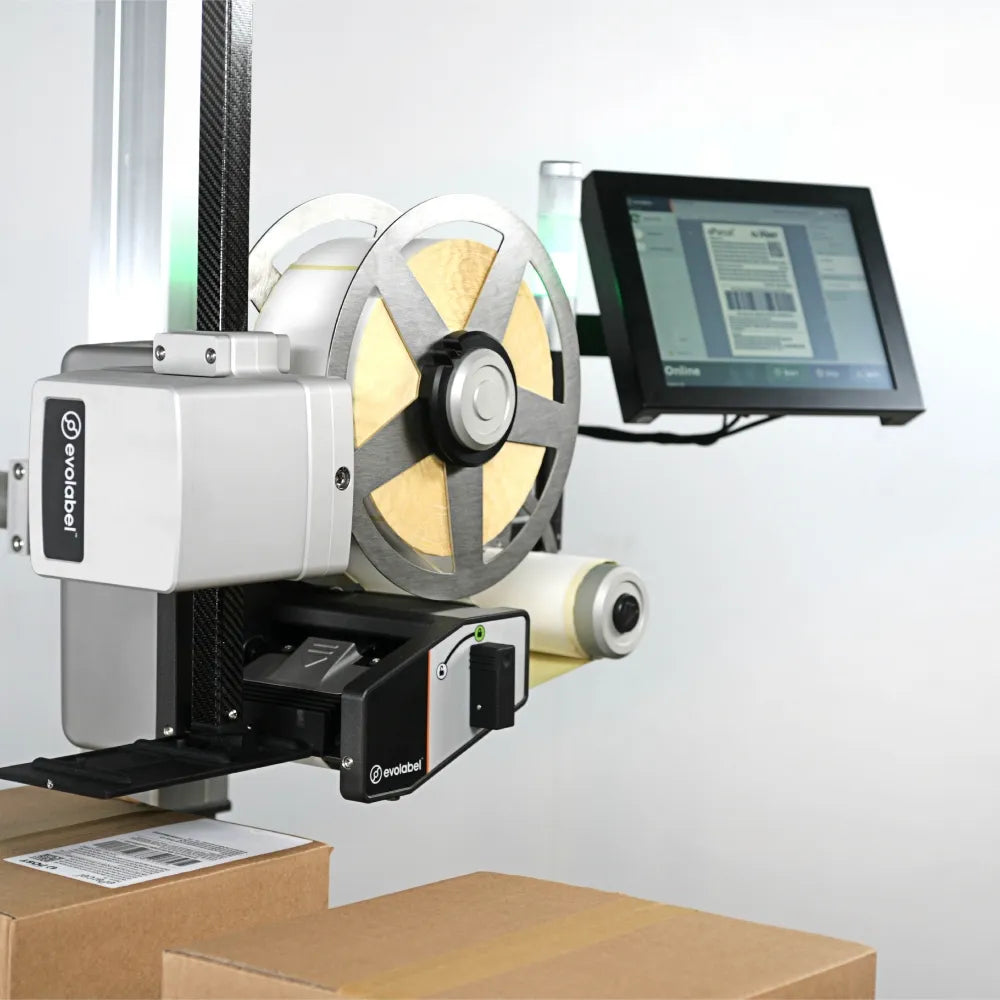

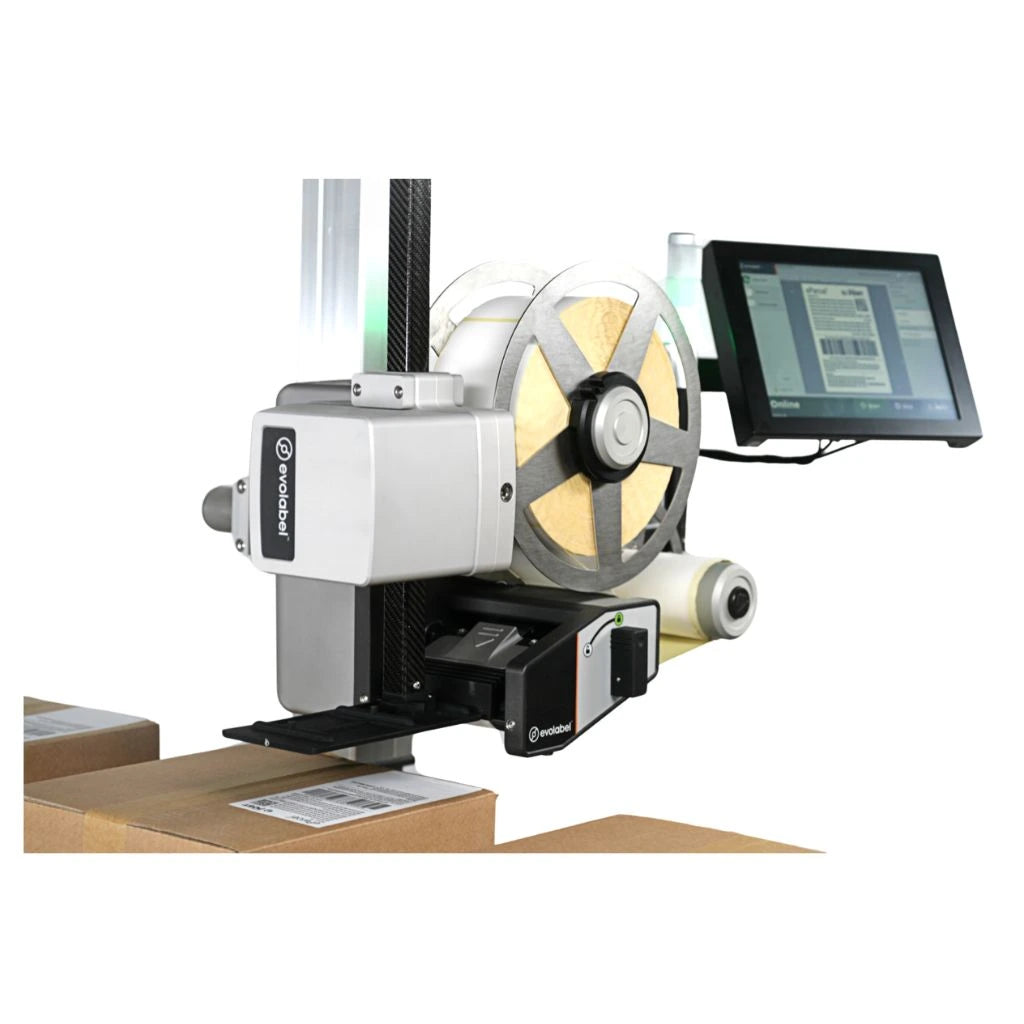

QuickTamp Applicator

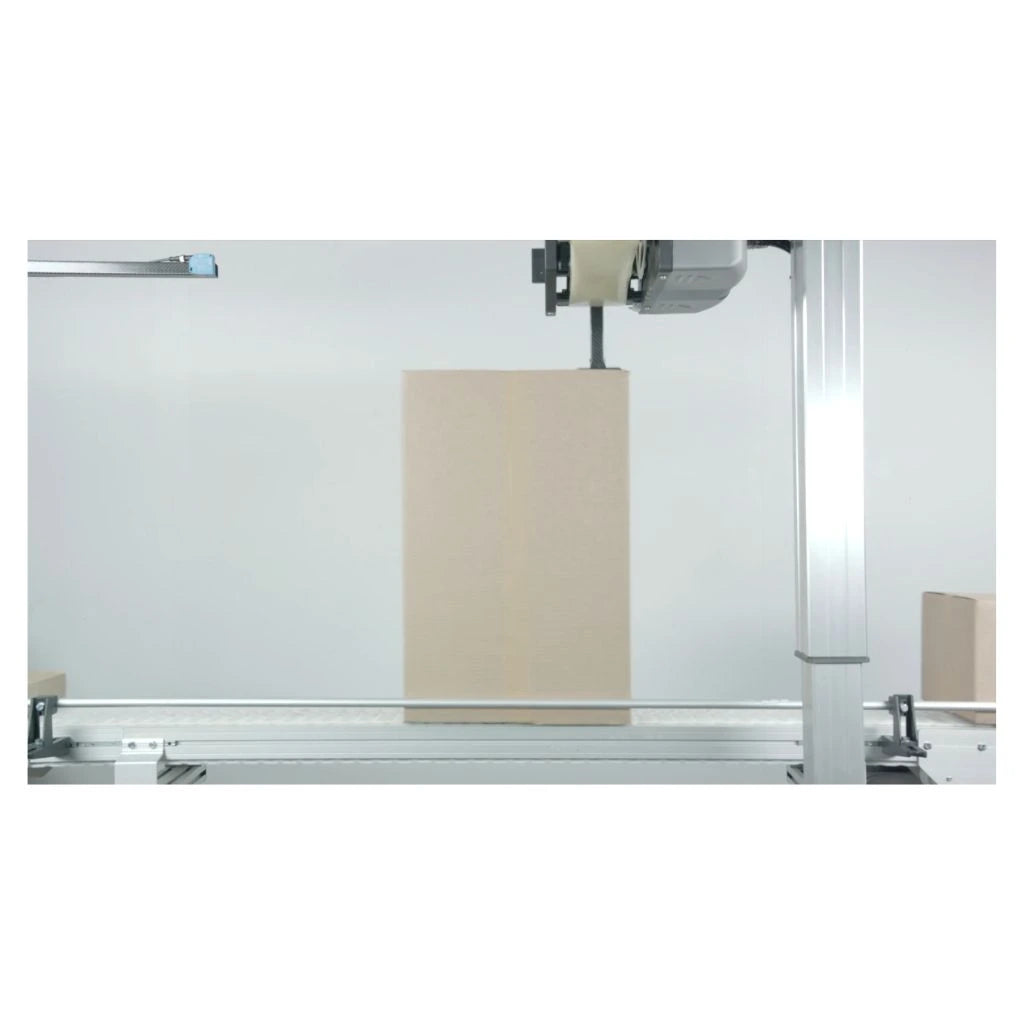

Driven by a pulse encoder controlled stepper motor, the carbon fiber shaft holding the label firmly with a patented 3D printed applicator pad, moves quickly to its target and applies the label with high precision. A height measuring sensor simplifies installation and ensure applying the label at the right position, even if the height of the package changes randomly and the line speed is up to 80 m/min.

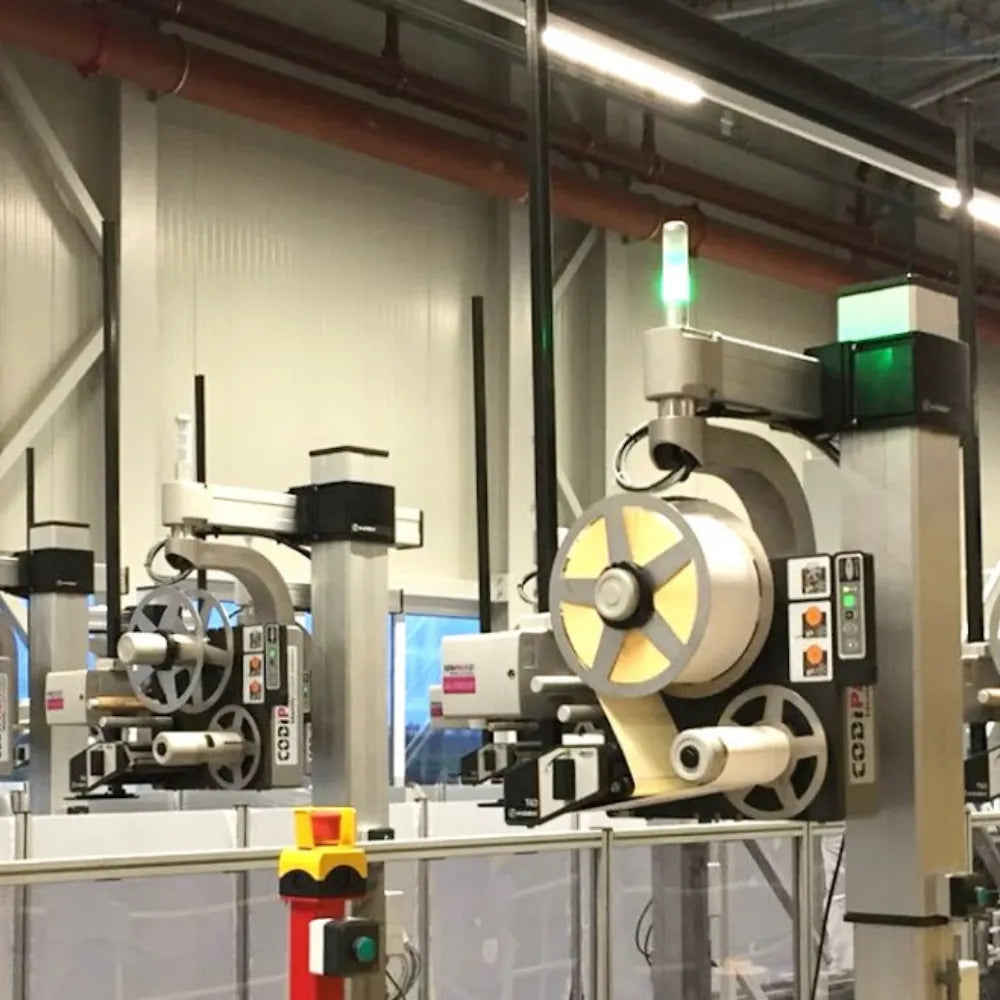

Logistic Center installation

Evolabel T63 QuickTamp applicators at a logistics center in The Netherlands applies shipping labels from above on boxes. Four parallel production lines, each with a capacity of 1500 packs/hour are equipped with two QuickTamp system per line (duty standby).  Evolabel is here successfully represented by Codipack .



Technical Specifications

The Evolabel QuickTamp G2 applicator is developed with ease of use, reliability, and safety in focus. It is fully automatic and no daily adjustments or calibrations are required. The applicator works with a linear motion and is specially designed for print and apply applications with high demands on speed and precision. It is primarily designed for top labeling, but may also be used for side labeling.

The tamping rod of carbon fiber together with the drive roller configuration equipped with traction control and automatic wear monitoring, ensure high performance throughout the lifetime of the applicator.

The QuickTamp G2 is designed to use the Evolabel patented applicator pad range for optimal label handling. This is obtained by creating vacuum locally in the pad through feeding of compressed air from the applicator. Vacuum is only present when the applicator is in print position. During the apply, the high speed of the QuickTamp G2 makes it possible to turn off the use of vacuum.
