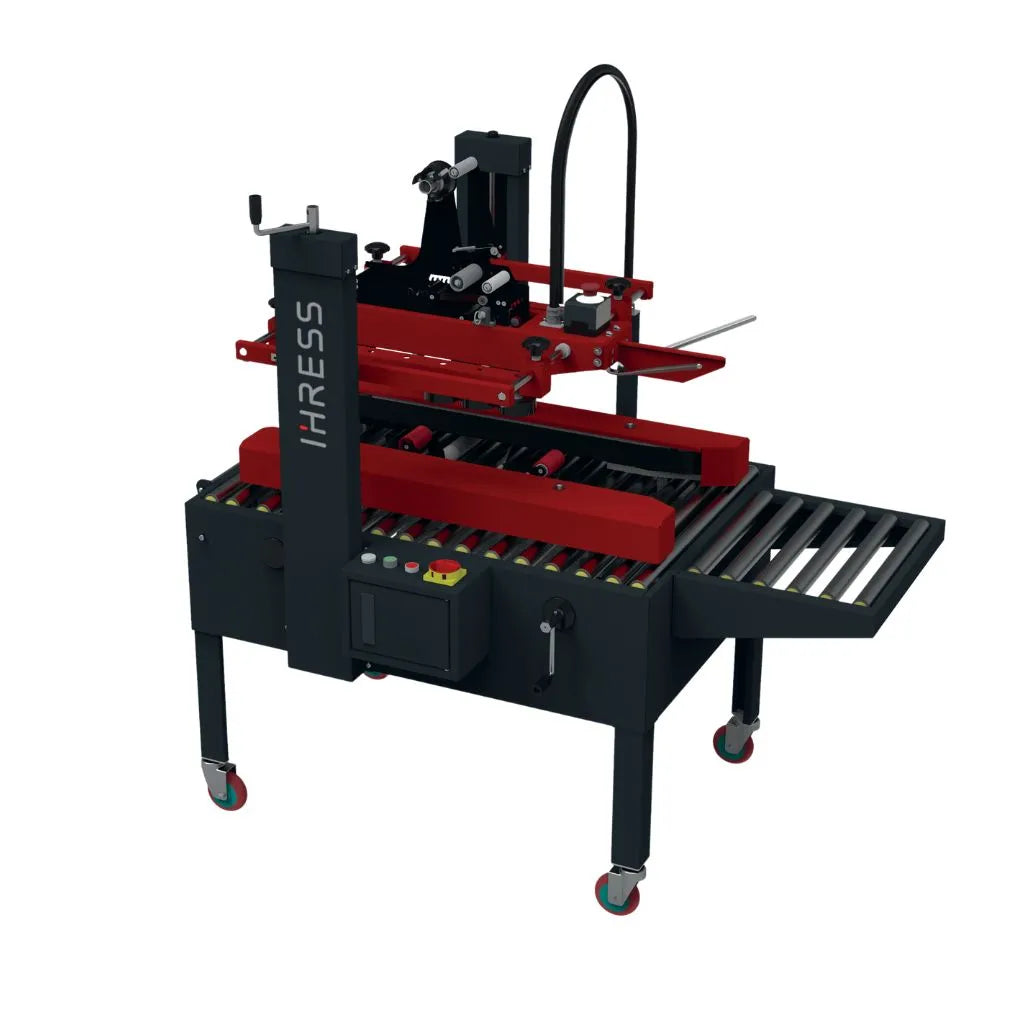

TECHNICAL CHARACTERISTICS OF THE STANDARD MACHINE

· Boxes dragging by means of side belts with independent motors.

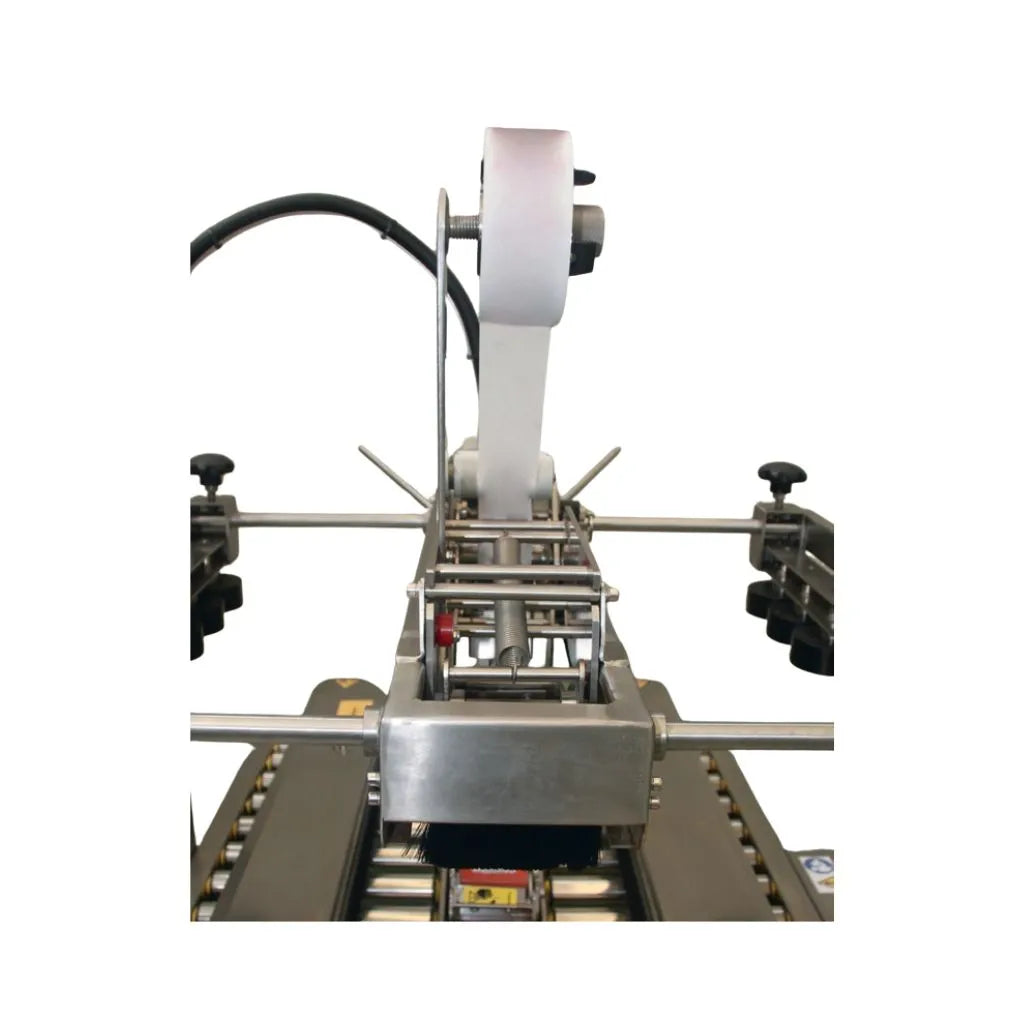

· Double sealing head, upper and lower.
· Weight 140 Kg.
· Height adjustable legs from 570 to 800 mm.
· Tension adjustment of the seal.
· Interchangeable heads with the possibility of using seals from 48 to 72 mm wide.

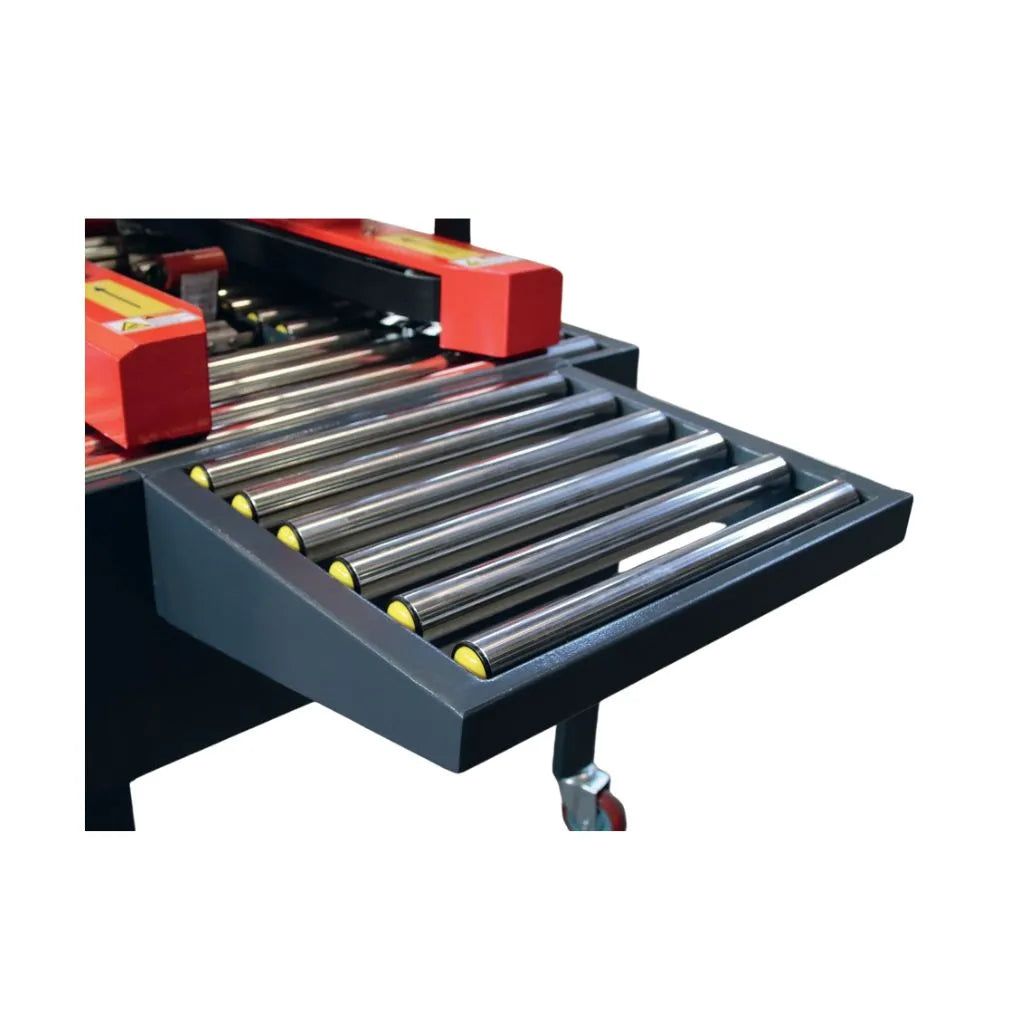

· Metal box transport rollers.
· Adjustable top guides to keep the flaps squared while sealing.
· Adjustable height and width of the cartons by means of a crank handle.
· Machine stop at the head for quick access. Admissible crate dimensions
· Type: RSC or B1- Length: 100 - ∞ mm
· Width: 115 - 510 mm
· Height: 120 - 490 mm The quality and format of the boxes must be
checked and approved by the iHRESS technical office.
*NOTE: For enclosures that require upper support wheels, the minimum
width is 150 mm (for more information, see options).

Technical Characteristics Standard
Supply Voltage 220 V 50 Hz single phase
Installed Power 0.45 Kw
Speed Crawler Belts 21 m/min
Closing Top and/or Bottom Flaps Seal 48 to 72 mm
Dimensional Adjustment Manual
Production Variable according to box format and operator

Other components or brands on request may incur extra costs.
* Depending on the quality, construction and size of the enclosures.
