Wipe Large Applicator

For large labels

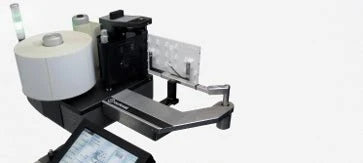

The Evolabel Wipe Large applicator is developed to apply large labels on the front of boxes. Together with the Evolabel 6" wide printer, it handles label size up to A5 format. As all Evolabel applicators, the Wipe Large is automatically folded away when changing label roll - together with the clean media path in the T63 printer, this function makes changing label roll quick and easy. Evolabel T63 printer handles both thermal transfer technology as well as direct thermal technology.

Handles label size up to A5 format
Thermal transfer and direct thermal technologies

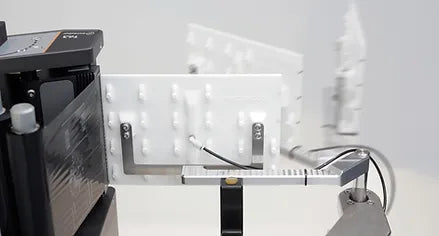

Evolabel's patented applicator plates ensure perfect label positioning. The same applicator plate handles various size labels without any adjustments or changes of settings. This thanks to the built in vacuum ejectors that works in several individual groups, securing good vacuum even if only a part of the plate is covered by the label.

Specifications

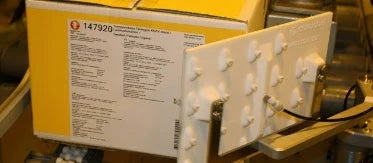

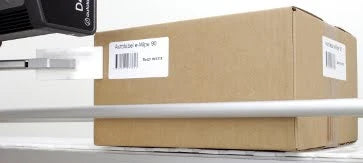

Evolabel Wipe Large applicator, applies large labels on the front of boxes.

The applicator reach up to 300 mm from the corner of the carton to the inner label edge. The label size can be all the way from 80x80 mm up to 158x240 mm.

The Evolabel Wipe Large applicator is installed on the side of the conveyor where the conveyor direction goes from right to left.

With several independent and integrated vacuum ejectors, the patented applicator plate allow different size labels, gives safe and accurate label apply and minimized air consumption. The capacity depends on label length; with 240 mm long labels it is up to 20 boxes per minute.

The mechanical, electrical and pneumatic interface between the Evolabel applicators and printers are all the same plug-and-play standard.
